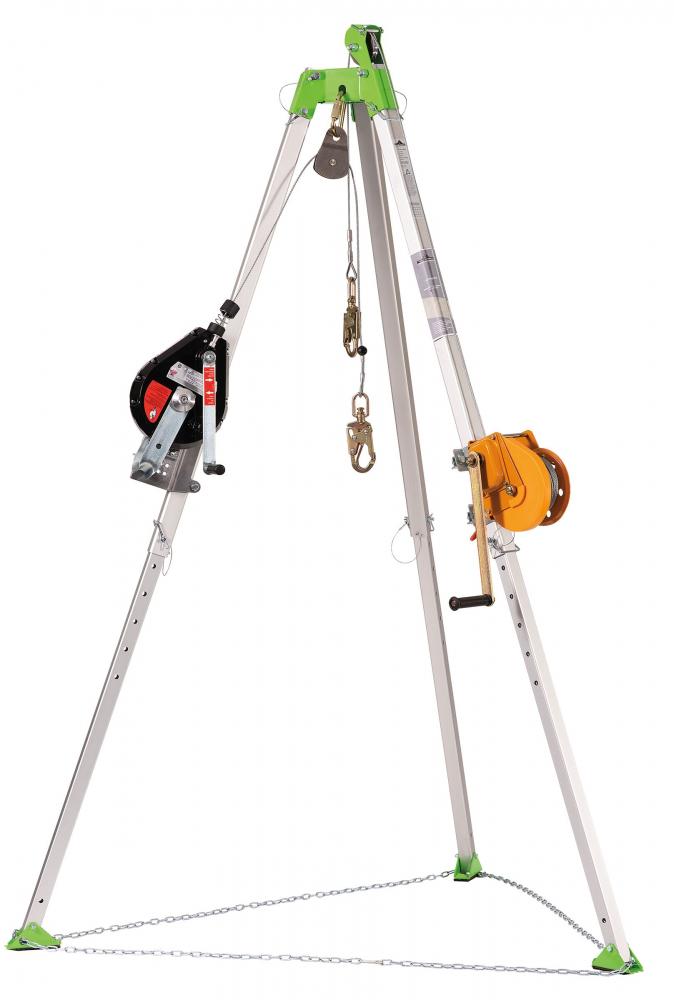

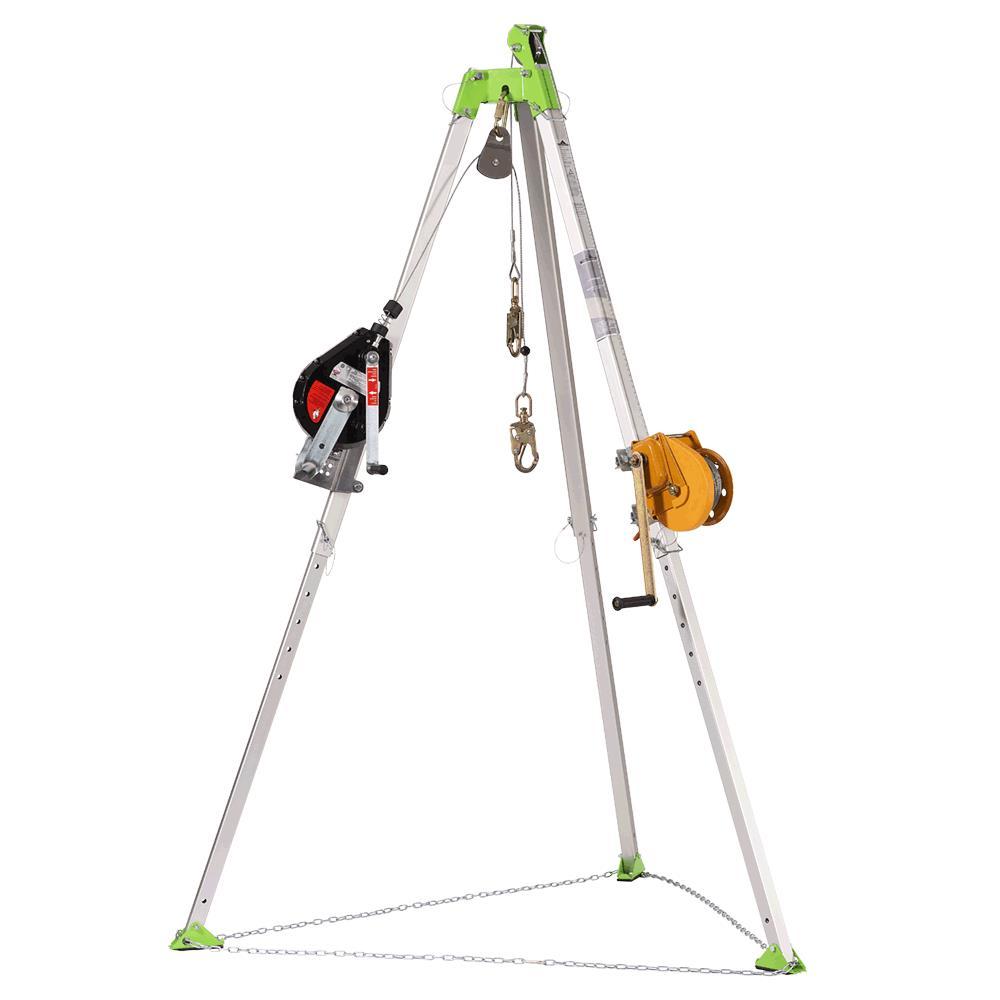

Fall Protection Confined Space Kits - TR-100 Tripod Combinations
Call For Price
- Part Number: V85026
- UPC: 00626053587765
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
The Peakworks Confined Space Rescue Kits feature a unique adjustable TR-100 tripod that has a built-in pulley situating the wire rope cable directly over the center point of the tripod for superior perfect operator balance and increased head room. The 7' (2.1m) tripod offers adjustable locking legs made of aluminum and comes with swivel steel feet, non-slip rubber bases, safety chain, and two additional anchorage points.
PeakWorks Confined Space Rescue Kits can hold 310 lbs. (141 kg) weight capacity (combined weight of person, tools, clothing, etc.). They meet or exceed CSA Z259.15 and ANSI Z359.18 and OSHA requirements.

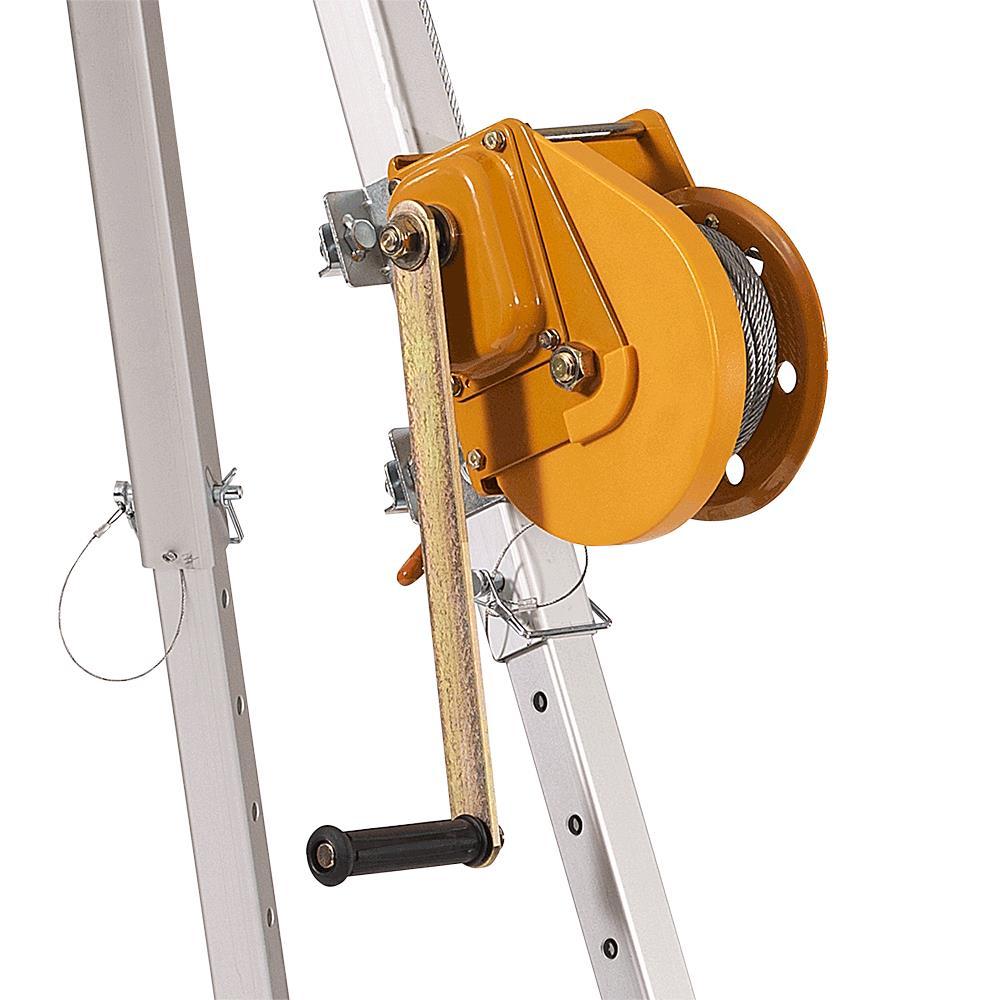

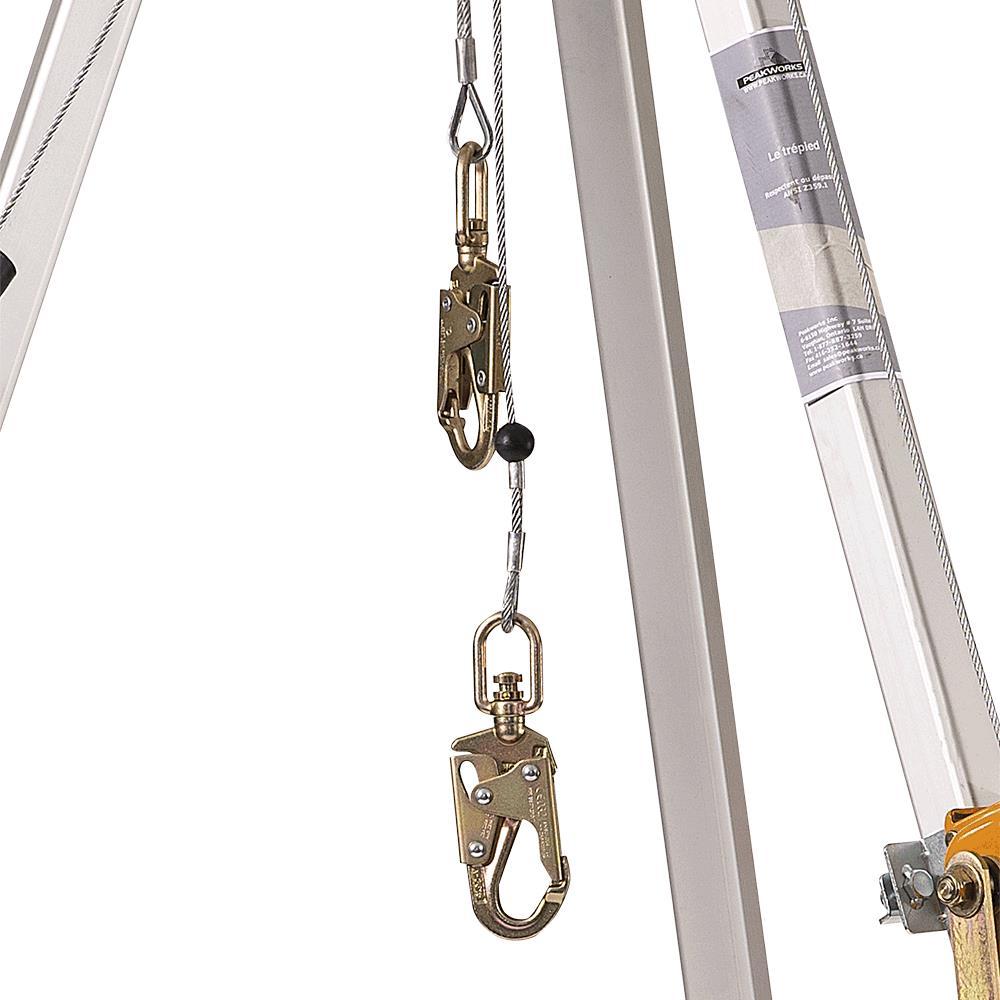

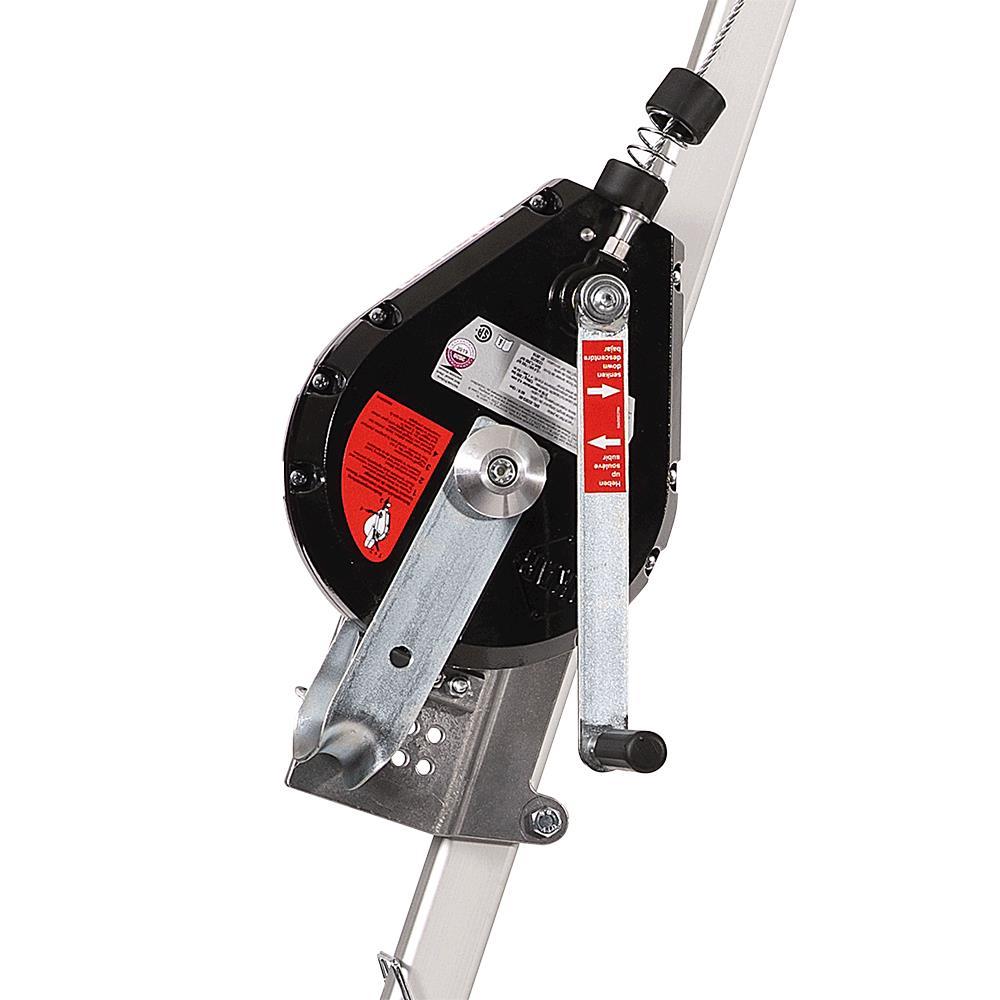

The TR-100 Tripod can be used with a PeakWorks SRL or Peakworks man winch (MW-65G) with 65' (20 m) galvanized cable and swivel hook. PeakWorks Confined Space Kits are available in three combinations - V85024: Tripod, 3-Way 60’ (18 m) SRL and Bag / V85025: Tripod, 65' (20 m) Man Winch and Bag / V85026: Tripod, 3-Way 60’ (18 m) SRL, 65' (20 m) Man Winch and Bag.
PeakWorks Confined Space Rescue Kits can hold 310 lbs. (141 kg) weight capacity (combined weight of person, tools, clothing, etc.). They meet or exceed CSA Z259.15 and ANSI Z359.18 and OSHA requirements.
The TR-100 Tripod can be used with a PeakWorks SRL or Peakworks man winch (MW-65G) with 65' (20 m) galvanized cable and swivel hook. PeakWorks Confined Space Kits are available in three combinations - V85024: Tripod, 3-Way 60’ (18 m) SRL and Bag / V85025: Tripod, 65' (20 m) Man Winch and Bag / V85026: Tripod, 3-Way 60’ (18 m) SRL, 65' (20 m) Man Winch and Bag.
Specifications
Details
Industrial Category:
Safety
Industrial Subcategory:
Fall Protection
Industrial Subtype:
Fall Protection Kits
COO (2 digit code):
DE
Has MSDS:
No
Includes:
Tripod V85011, 3-Way Self-Retracting Lifeline V845534060, Man Winch V845179065, Carrying Bag V86005
Lifeline Type:
60 ft Vertical Lifeline
Master Pack Qty.:
1
Pallet Qty:
1
Series:
Confined Space
SRL length:
60 ft
Standards:
Z259.2.2 Type 3|OSHA|ANSI A10.14|CSA Z359.1|ANSI Z359.18|CSA Z259.15
Storage Package:

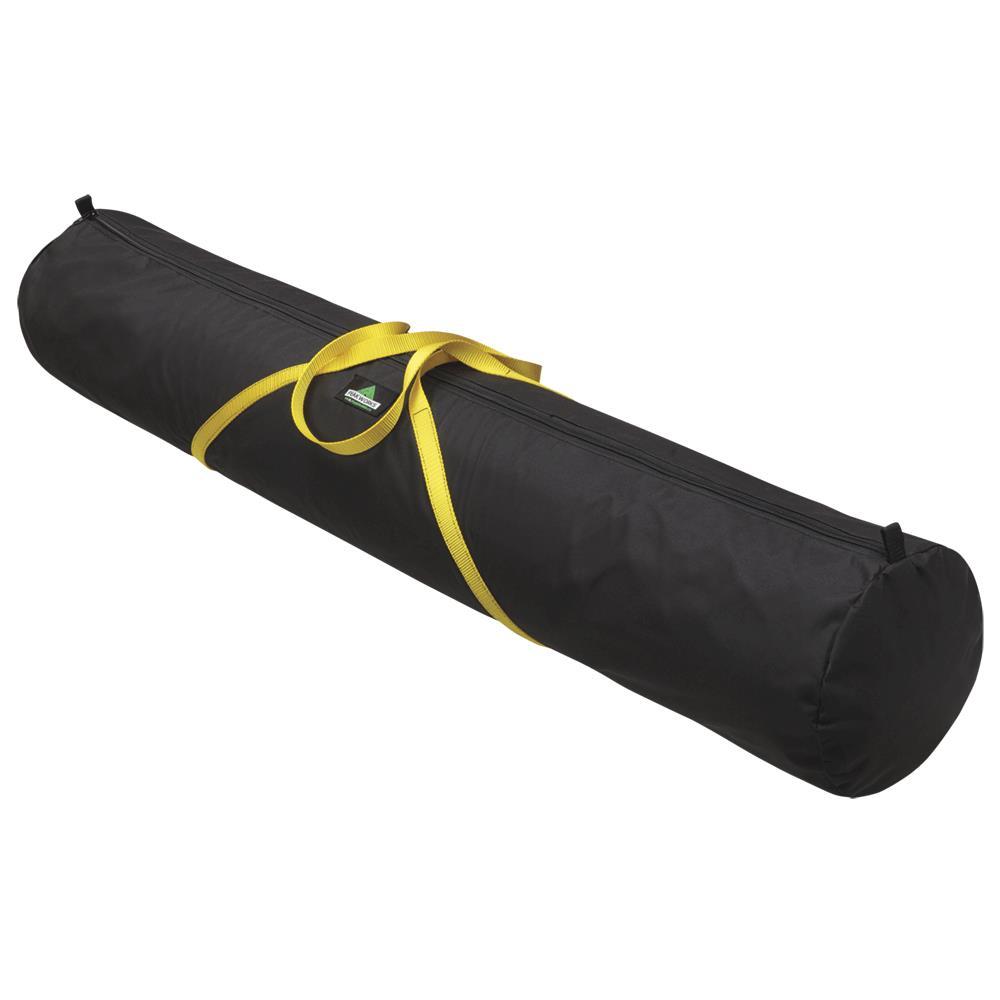

Bag
UNSPSC:
46161715
UOM:
EA
Winch Capacity:
151 kg (310 lb)
Winch Length (ft.):
65 ft (20 m)
Other Details
APPLICATION - Designed to provide safe access and emergency rescue in confined spaces. TR-100 Tripod can be used with Peakworks man winch (MW-65G) with 65' (20 m) galvanized cable and PeakWorks SRL by attaching the pre-installed SRL mounting bracket
CAPACITY - Holds 310 lbs. (141 kg) weight capacity (combined weight of person, tools, clothing, etc.). Operating temperature between: -35°C to +35°C / -31°F to 95°F
CERTIFICATION - Meets or exceeds CSA Z259.15 and ANSI Z359.18 and OSHA requirements
Confined Space Entry Kits
DESIGN – Peakworks Confined Space Rescue Kit offers best-in-class fall protection that is lightweight, durable and safe. Made of corrosion-resistant stainless steel and aluminum components
Fall Protection Tripod Lifeline Man Winch Carrying Bag

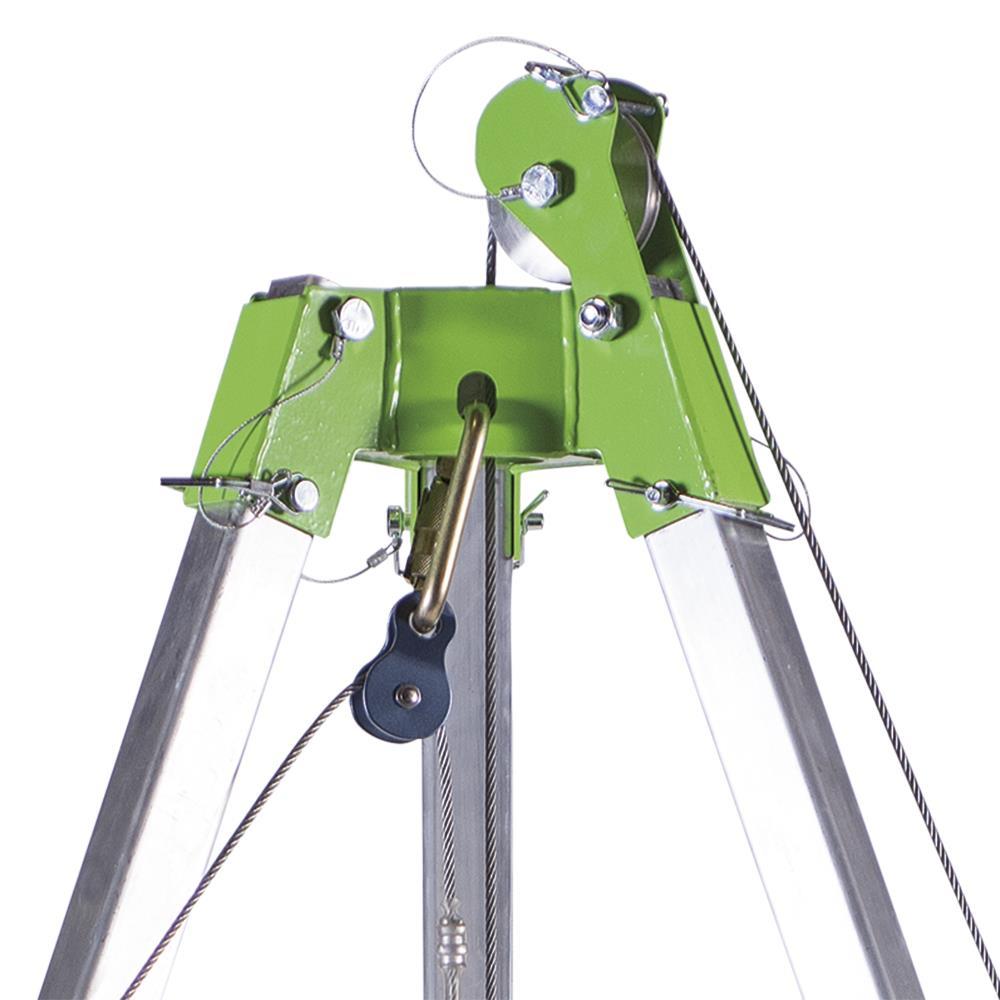

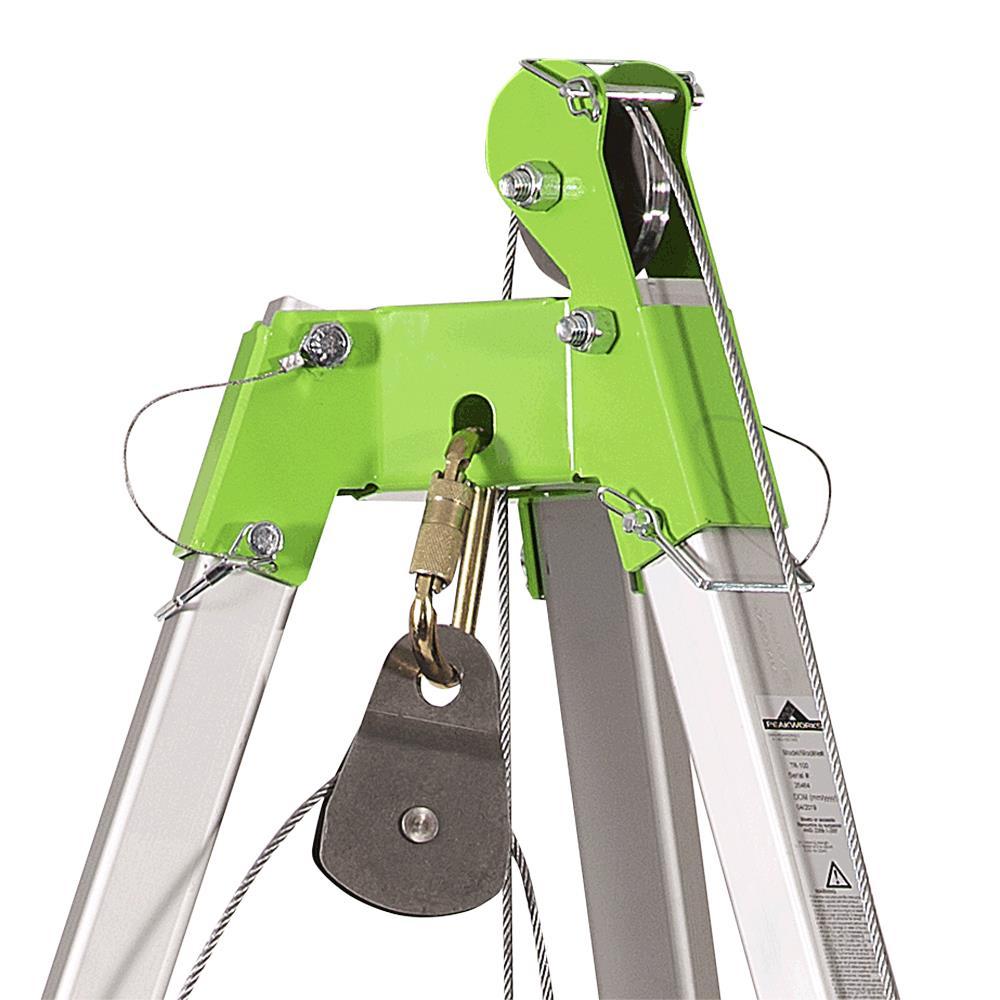

FEATURES – Each kit comes with a 7' (2.1m) TR-100 tripod that has a built-in pulley situating the wire rope cable directly over the center point of the tripod for superior perfect operator balance.

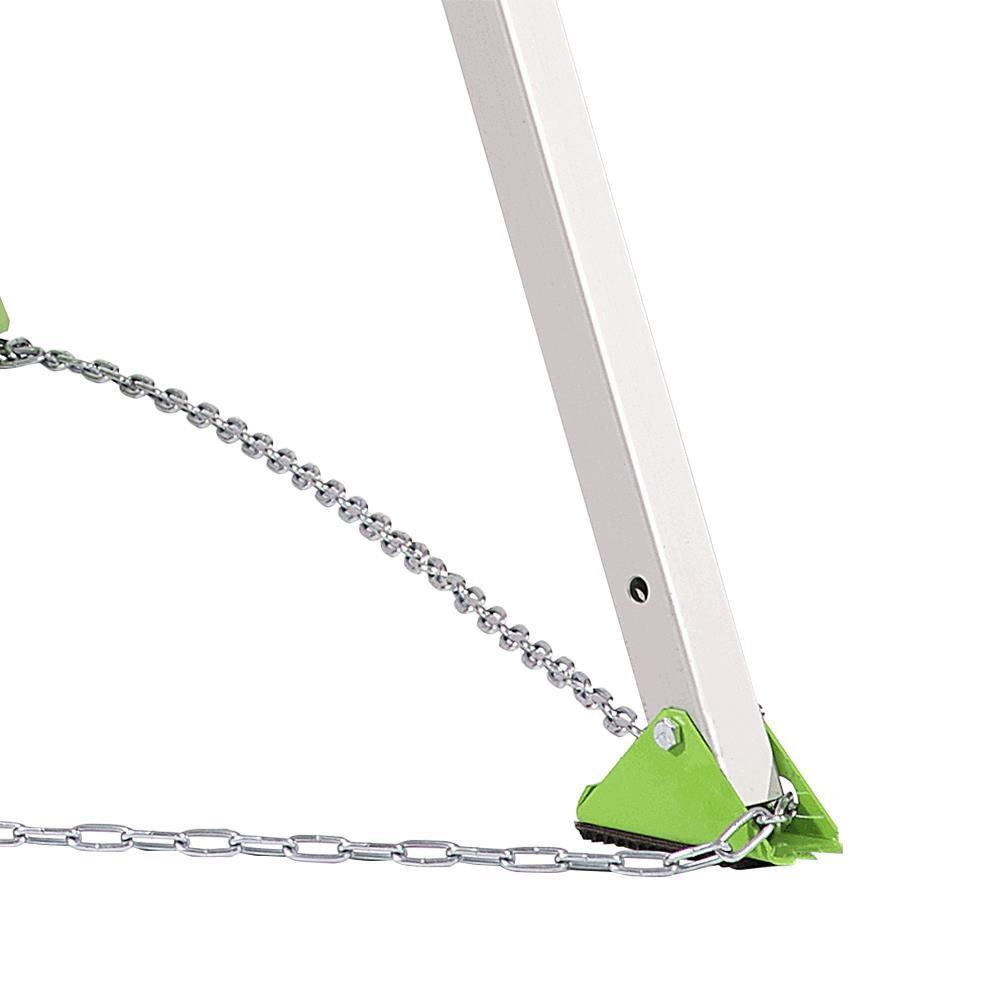

FEATURES – Tripod features adjustable locking legs made of aluminum and comes with swivel steel feet, non-slip rubber bases, safety chain, and two additional anchorage points.
Peakworks Fall Protection Confined Space Tripod Kit
