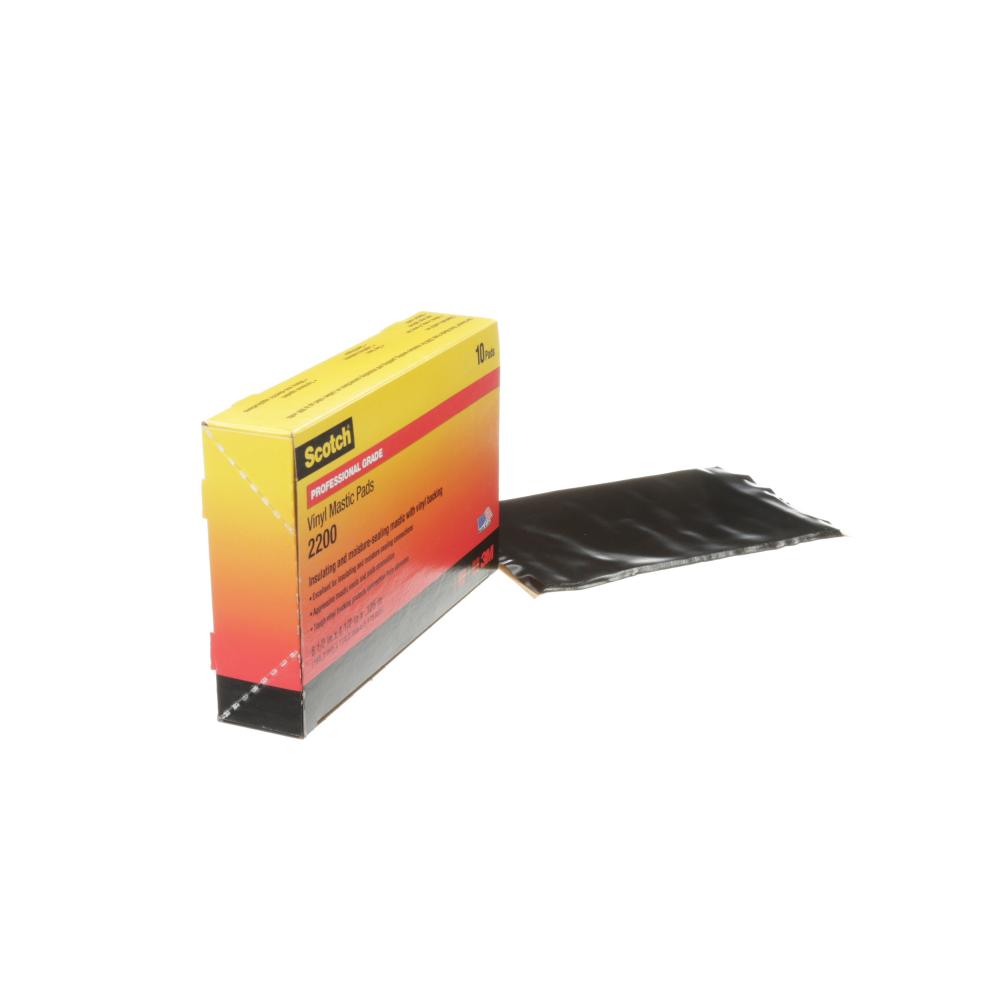

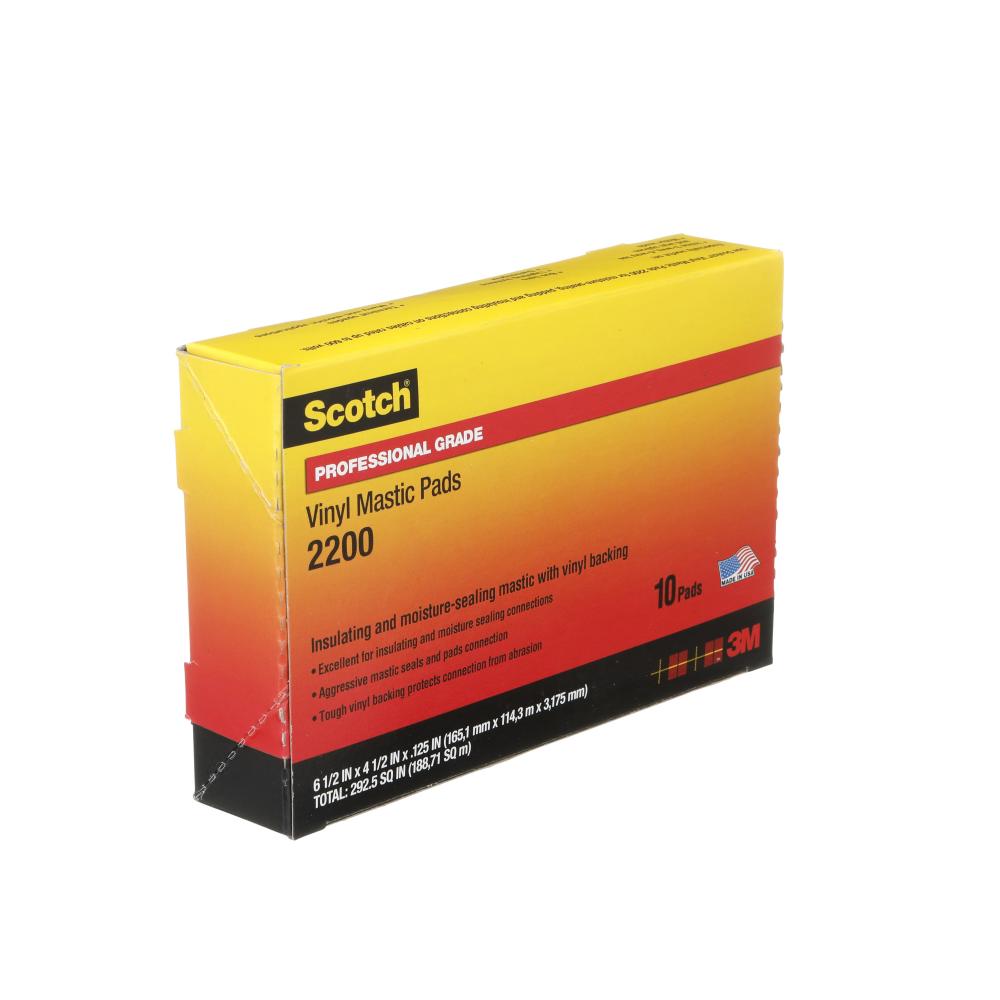

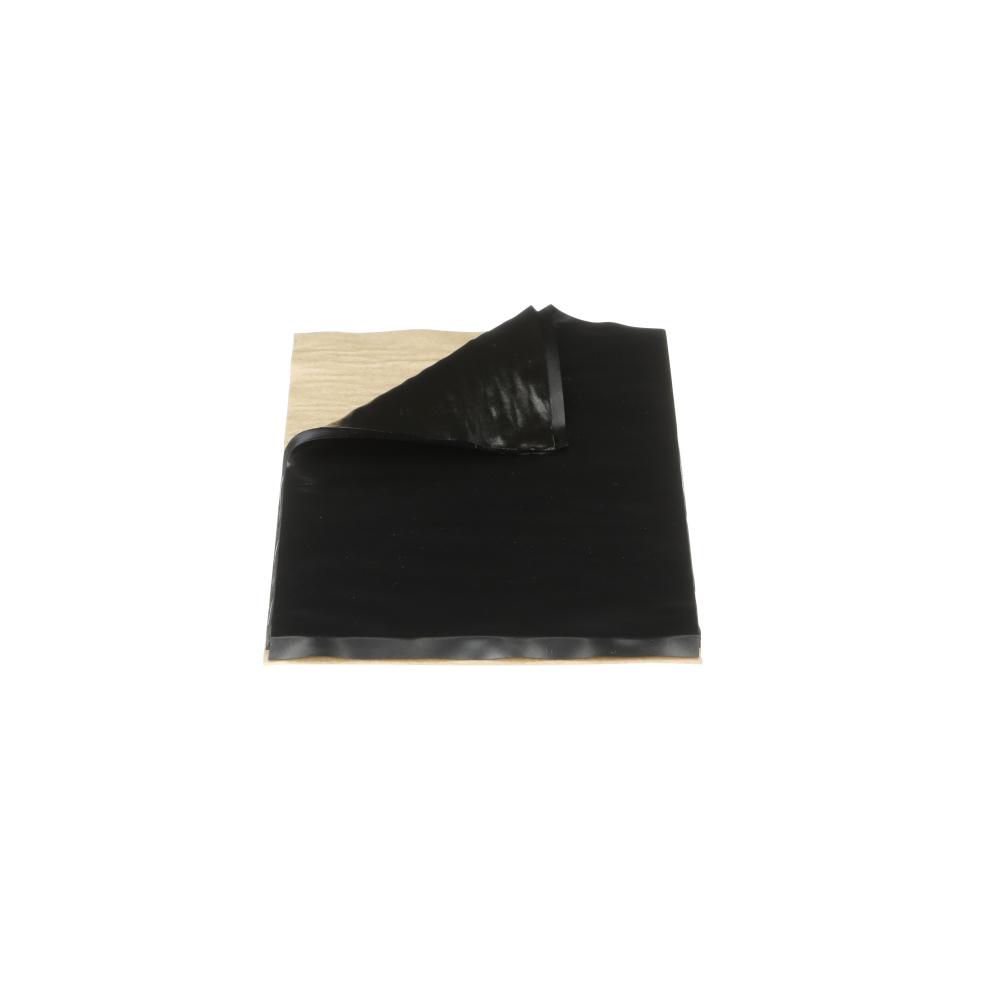

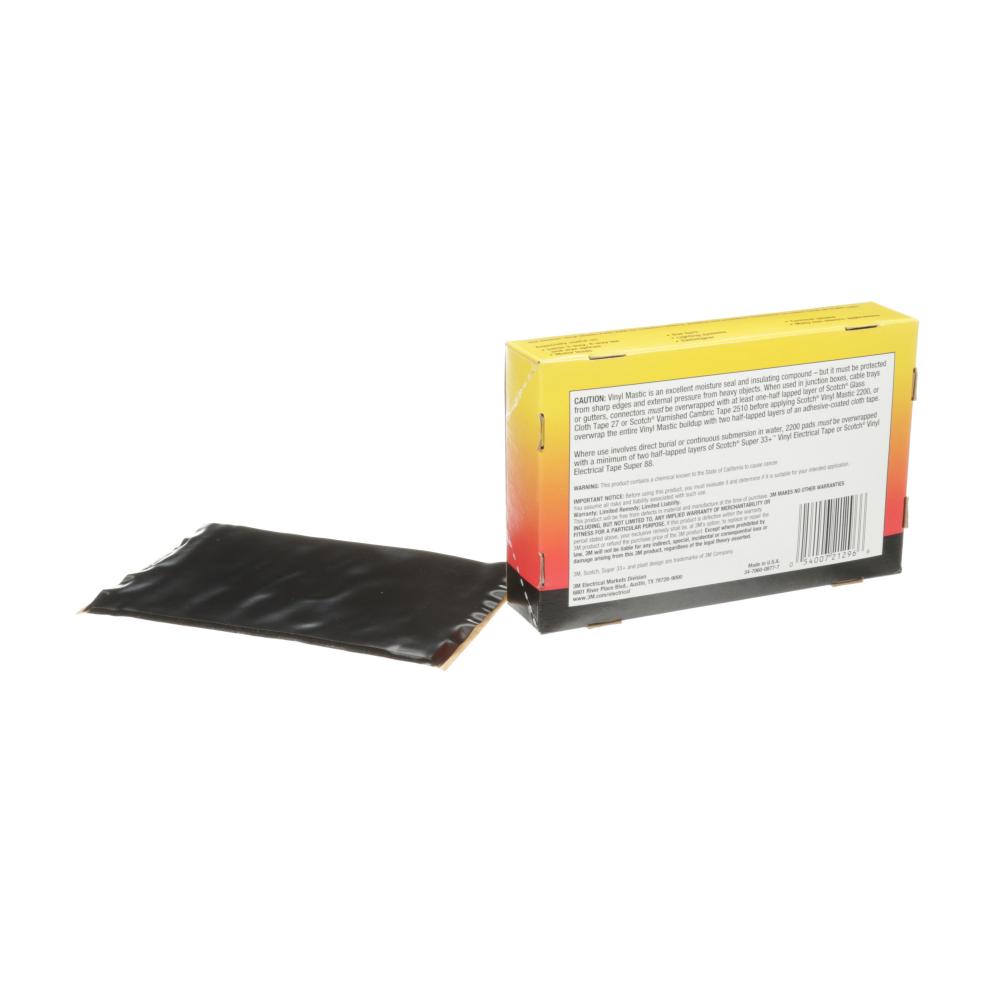

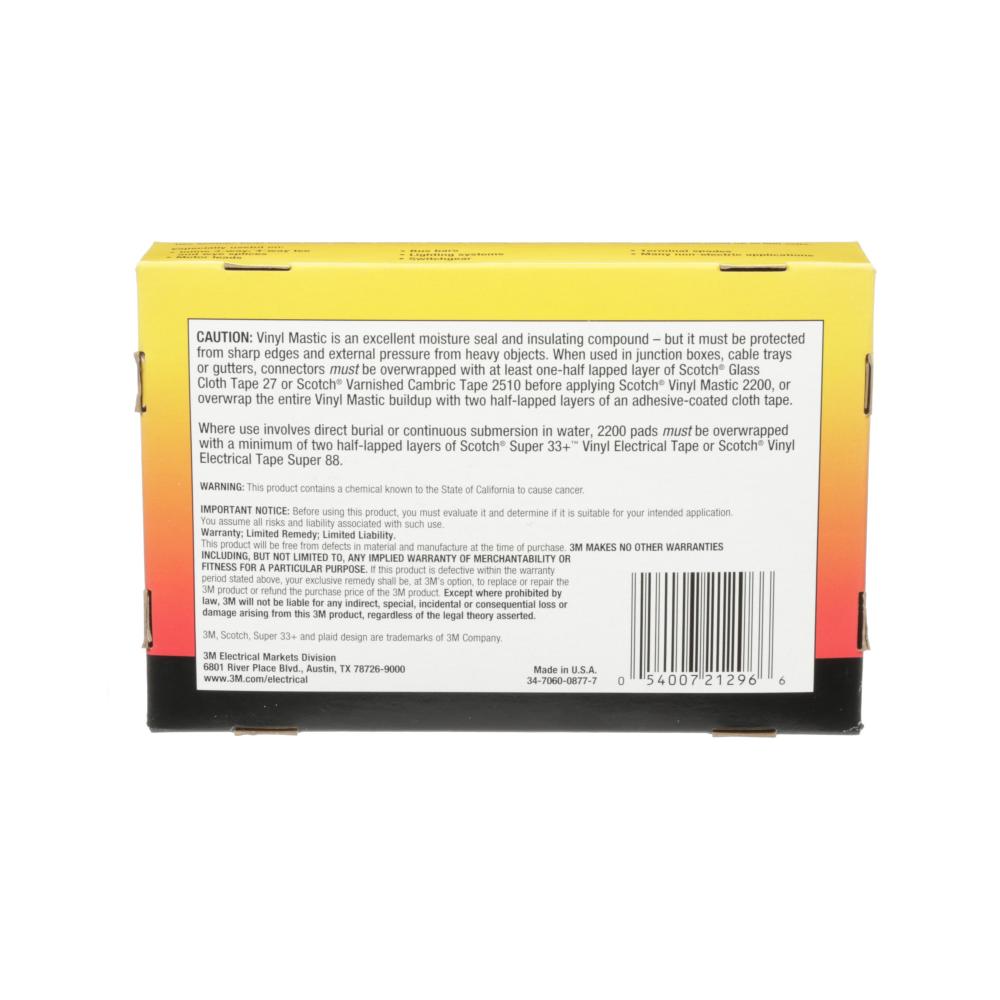

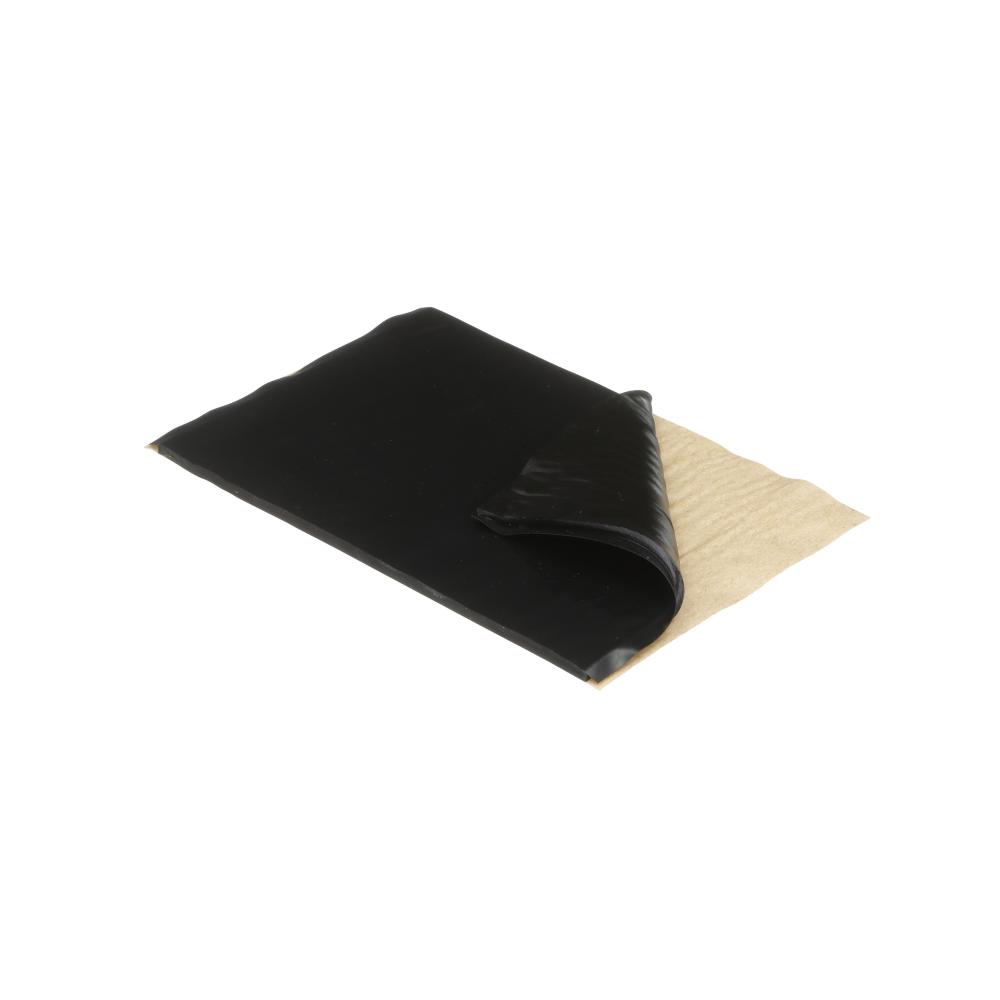

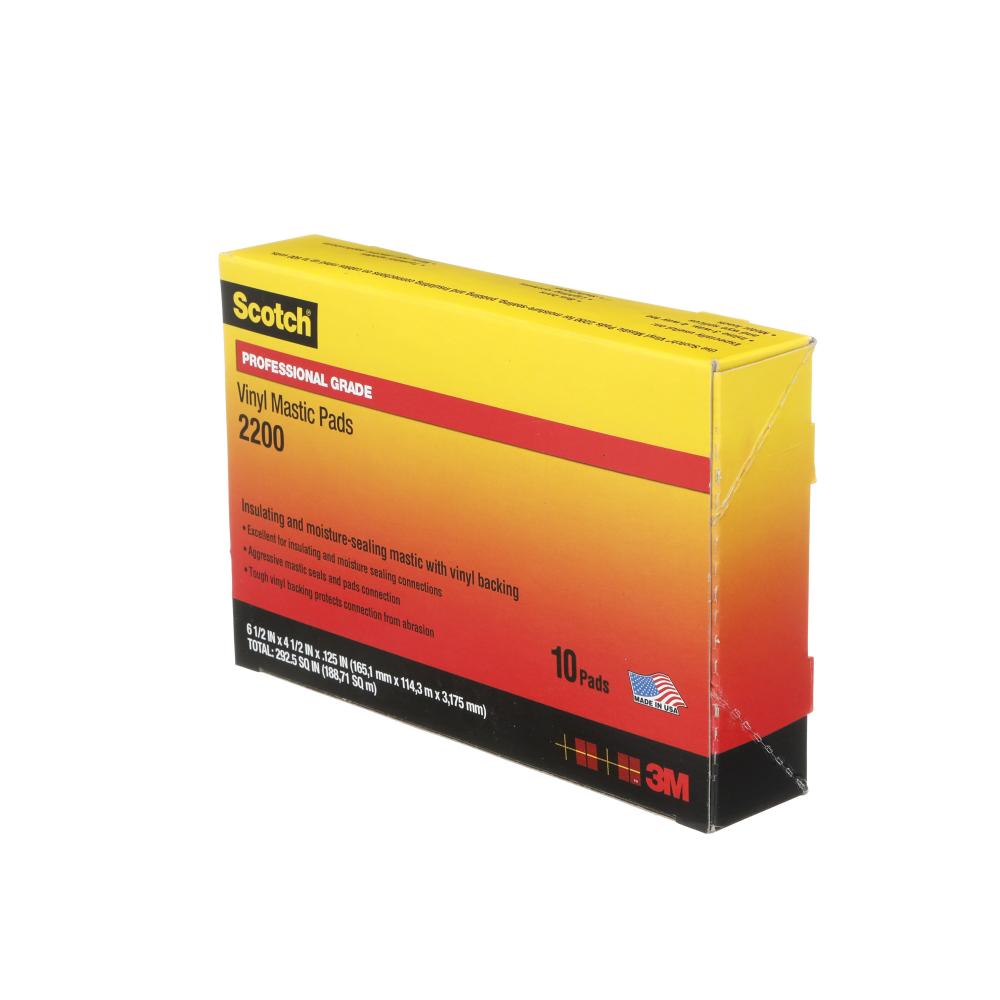

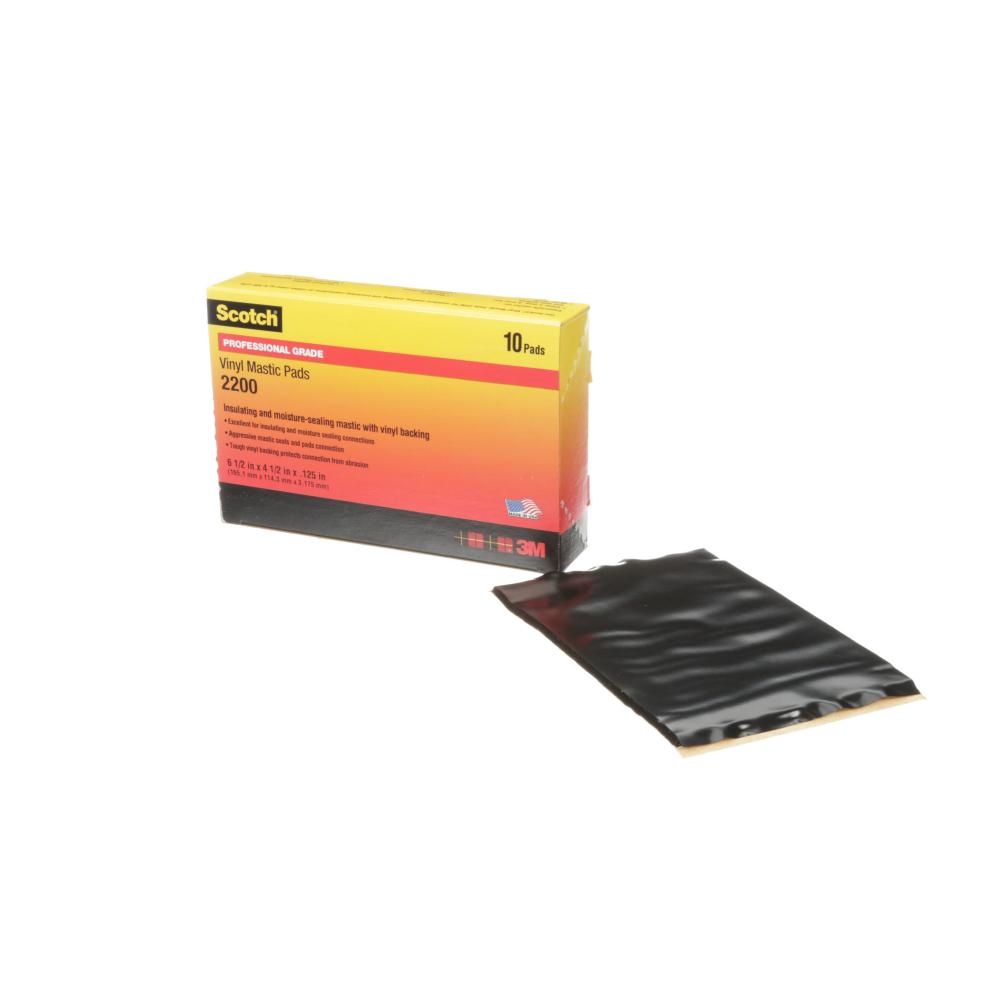

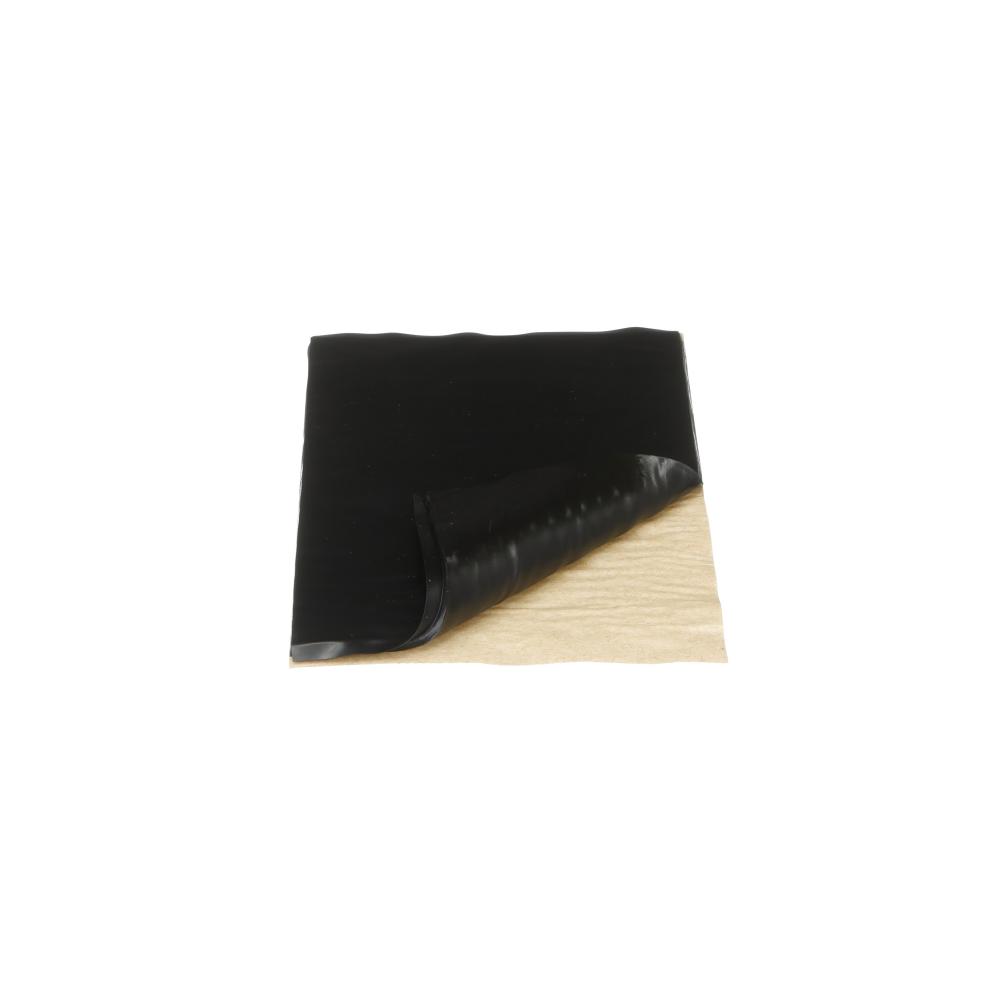

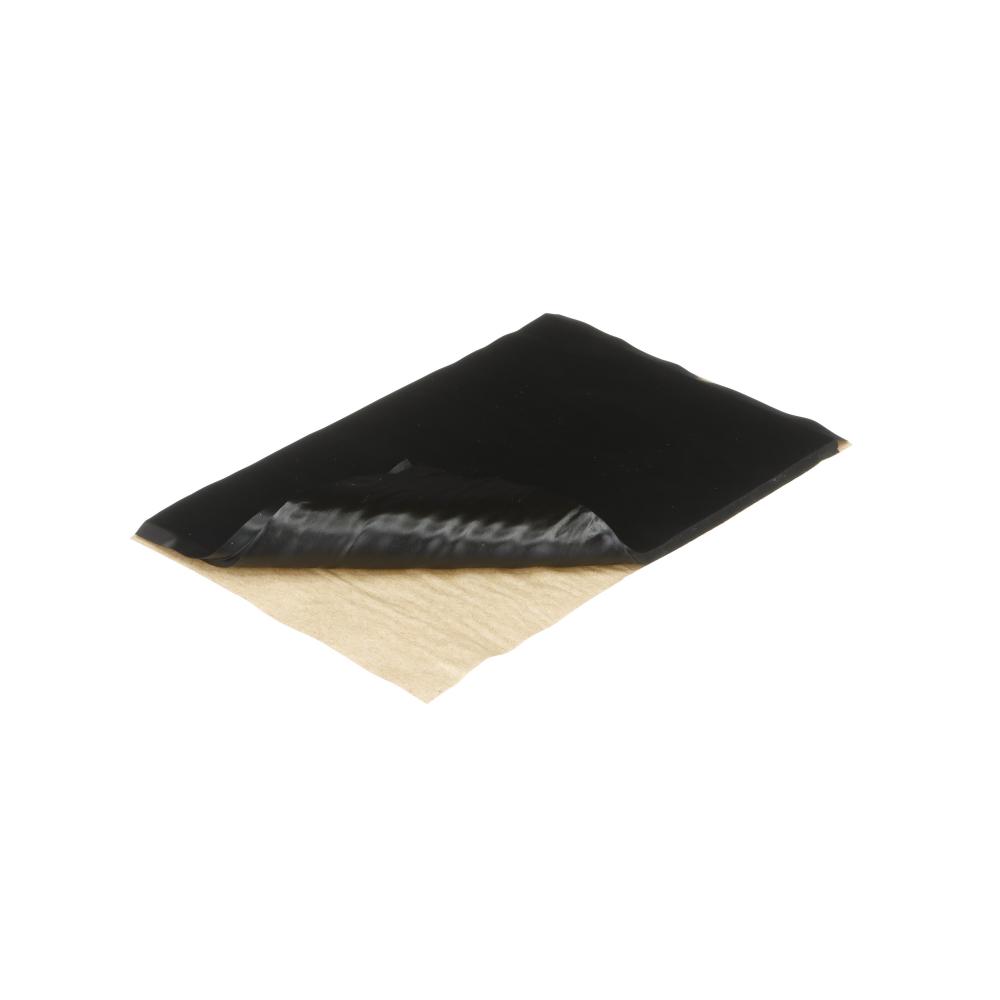

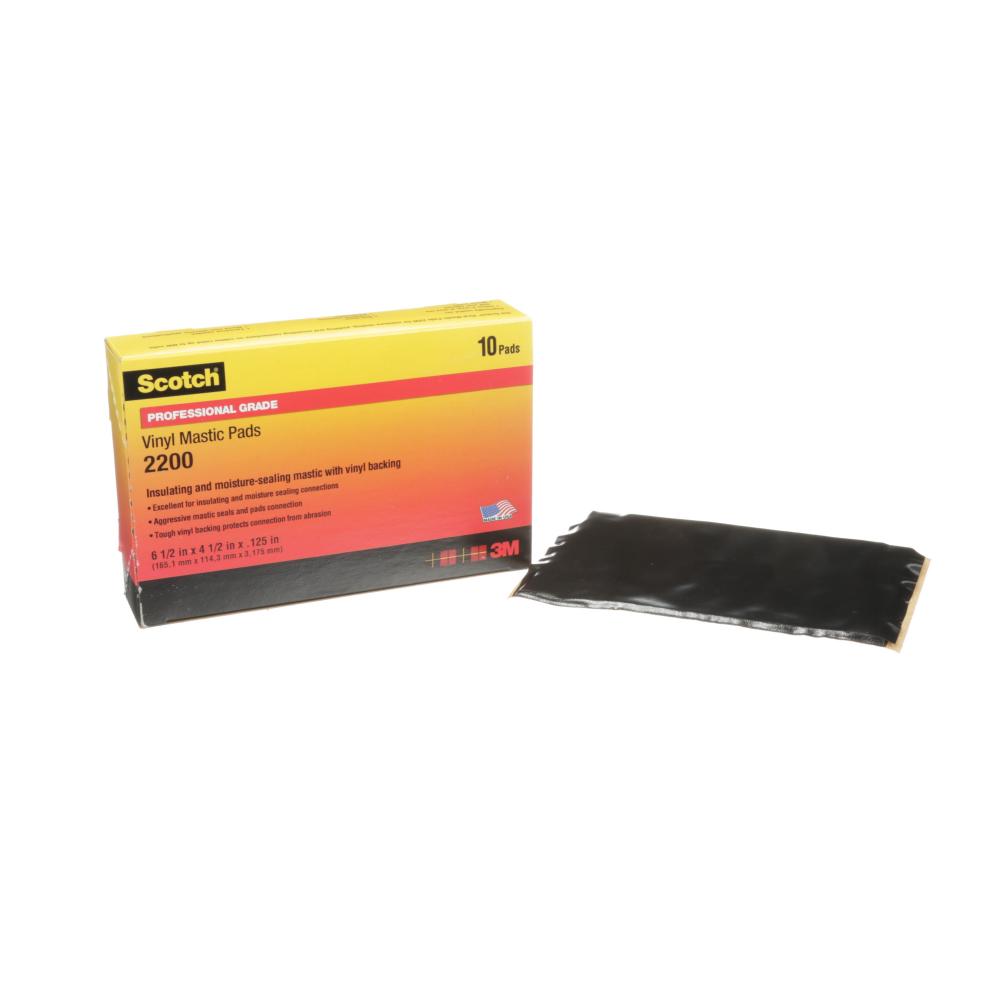

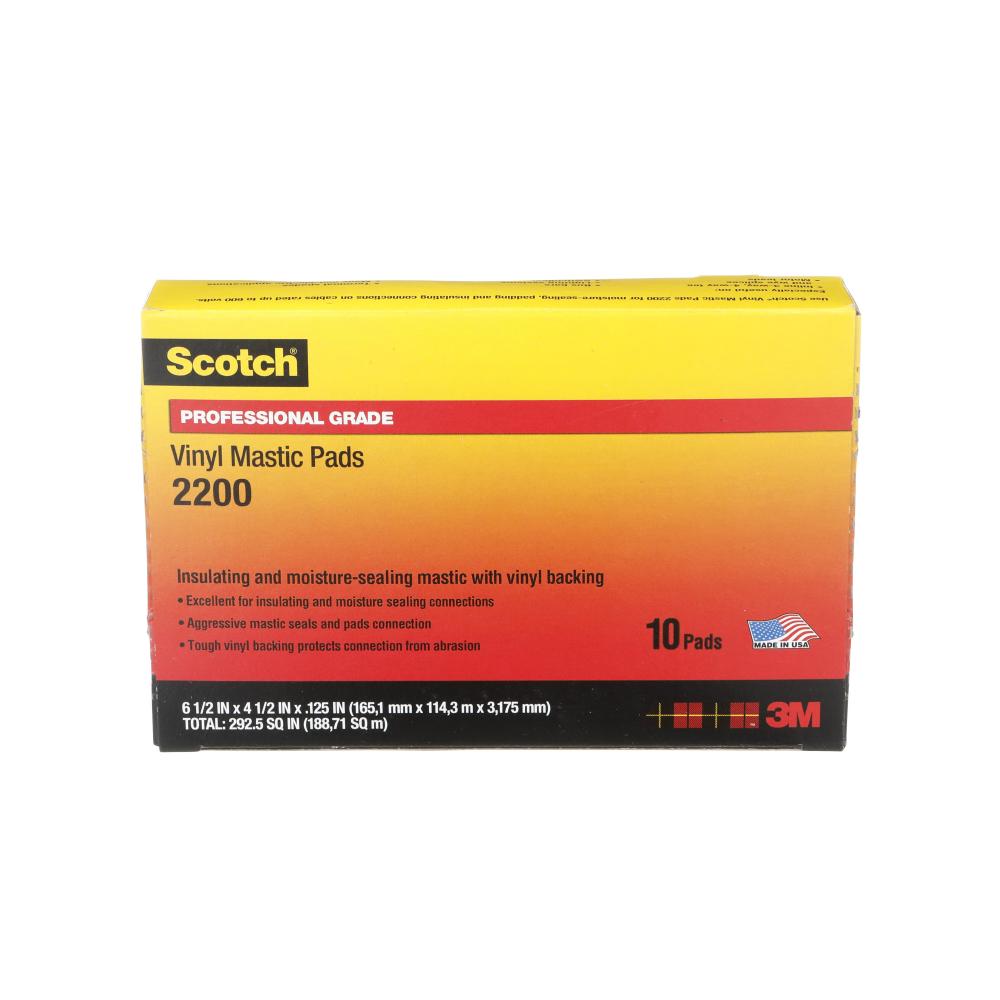

Scotch® Vinyl Mastic Pad
Call For Price
- Part Number: 7000057774
- UPC:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
The Scotch® Vinyl Mastic Pad 2200 is a 125 mil (3.18 mm) thick, premium-grade pad used to offer moisture sealing and pad connections up to 600V. It withstands a wide temperature range of 0°F to 100°F (-18°C to 38°C).Scotch Vinyl Mastic Pad 2200 has an aggressive mastic adhesive that offers excellent adhesion. This tape has a polyvinyl chloride backing that optimally resists against abrasion, moisture, alkalis, acid, UV rays, copper corrosion, and varying weather conditions. It is suitable for indoor and outdoor applications and is RoHS 2011/65/EU Compliant.
Specifications
Details
Industrial Category:
Adhesives, Sealants and Tape
Industrial Subcategory:
Tapes
Industrial Subtype:
Packaging Tapes
Adhesion Strength:
200.0 oz/in
Adhesive Type:
Mastic
Application:
Sealing
Application Method:
Apply by hand
Backing (Carrier) Material:
Vinyl
Backing (Carrier) Thickness (Metric):
0.18 mm
Backing Thickness (Imperial):
7.0 mil
Backing Thickness (Metric):
0.18 mm
Color Family:
Black
ECCN:
EAR99
Elongation:
200.0 %
Elongation at Break:
200%
Indoor/Outdoor:
Both
Maximum Operating Temperature (Celsius):
80.0 °C
Maximum Operating Temperature (Fahrenheit):
100.0 °F
Minimum Operating Temperature (Celsius):
-18.0 °C
Overall Length (Imperial):
6.5 in
Overall Length (Metric):
114.3 m
Overall Thickness (Metric):
3.2 mm
Overall Width (Imperial):
4.5 in
Overall Width (Metric):
165.0 mm
Product Color:
Black
Product Type:
Mastic tape
RoHS EU Comments:
RoHS 2011/65/EU compliant without exemption
Tape Grade:
Professional
Tape Width (Metric):
165.0 mm
Total Tape Thickness without Liner (Imperial):
125.0 mil
Total Tape Thickness without Liner (Metric):
3.18 mm
Unit of Use - Customary Height Dimension:
0.20
Unit of Use - Customary Length Dimension:
6.50
Unit of Use - Customary Net Weight:
0.0800
Unit of Use - Customary Width Dimension:
4.50
Unit of Use - Item Quantity:
1.0
Unit of Use - Item Unit:
EACH
Unit of Use - Total Unit Quantity:
1.0
Unit of Use - Unit:
EACH
UPC Code:
00054007212966
UV Resistant:
Yes
Other Details
Abrasion
durable polyvinyl chloride and a thick 83-mil (2.1 mm) mastic roll
Made of 7-mil (0.18 mm) black
moisture and alkalis with its polyvinyl chloride backing
pre-cut pad insulates and seals out moisture for connections up to 600 volts
Provides protection against UV rays
RoHS 2011/65/EU Compliant
Self-fusing
Withstands a wide temperature range of 0°F to 100°F (-18°C to 38°C)
