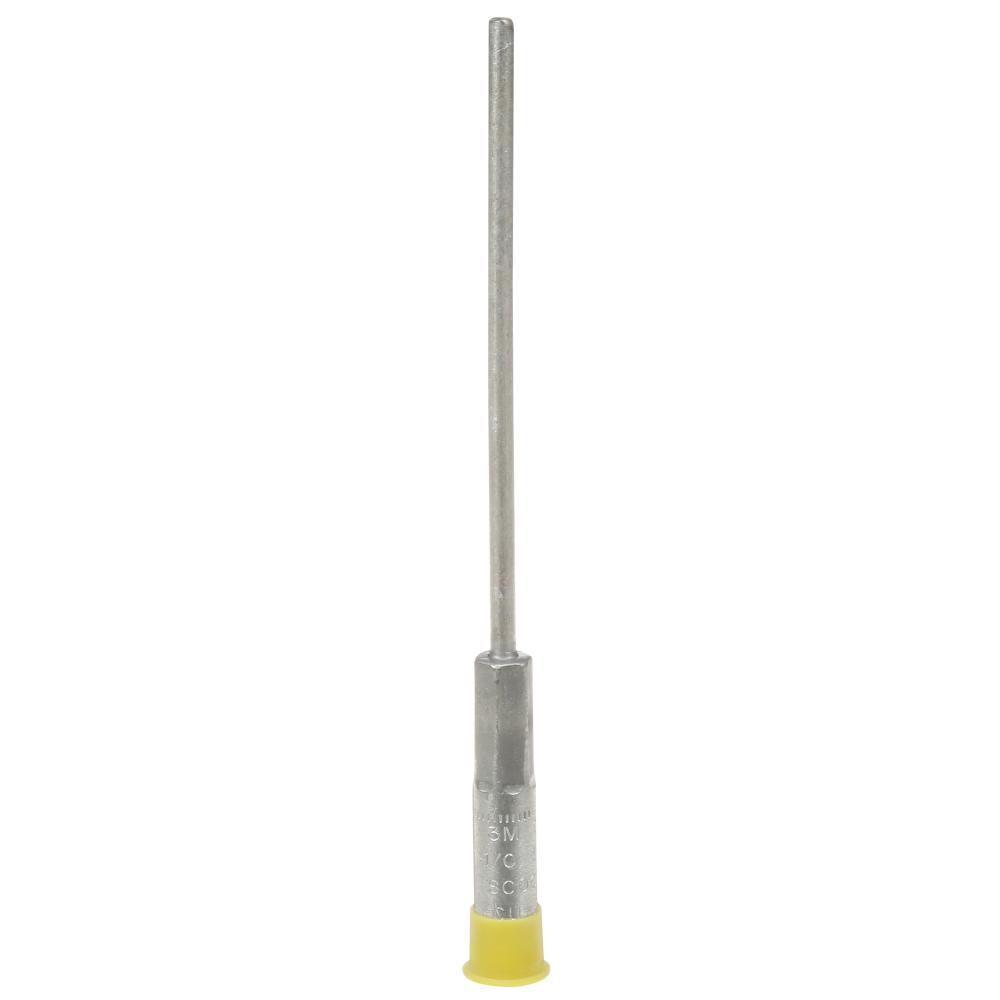

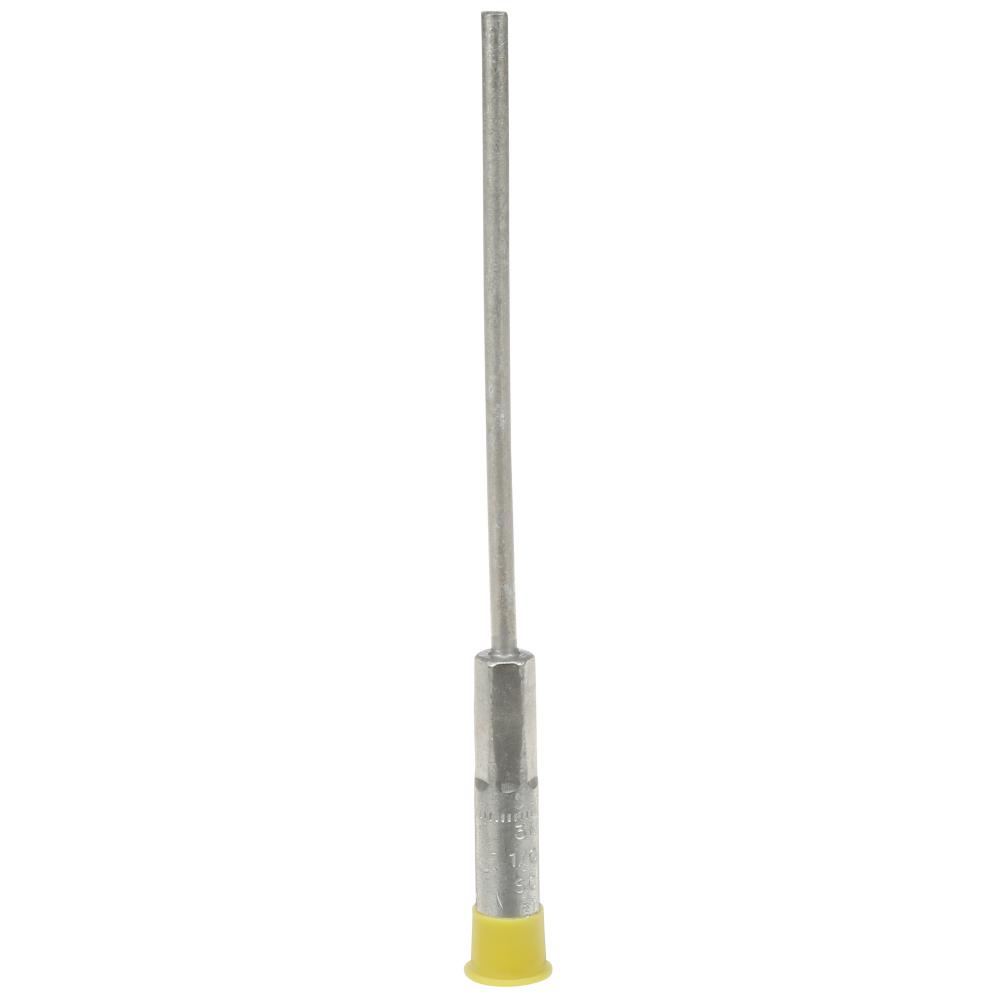

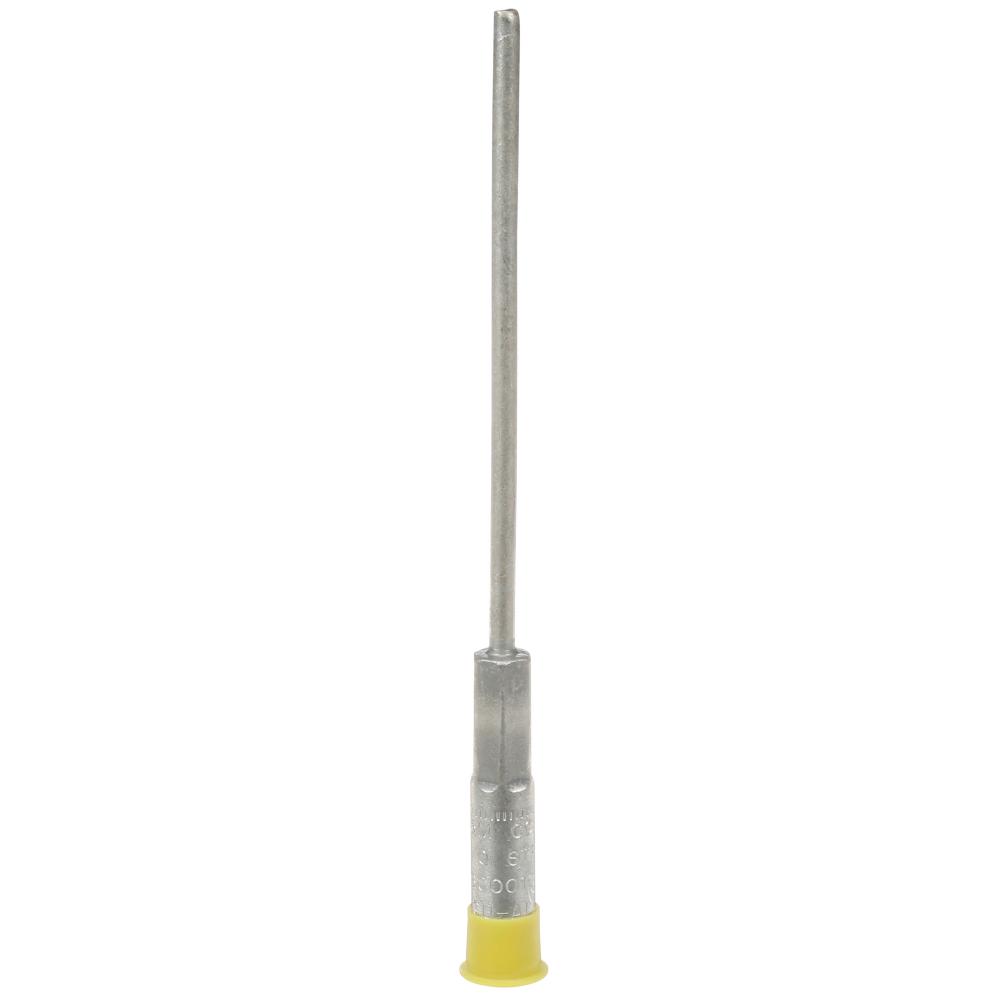

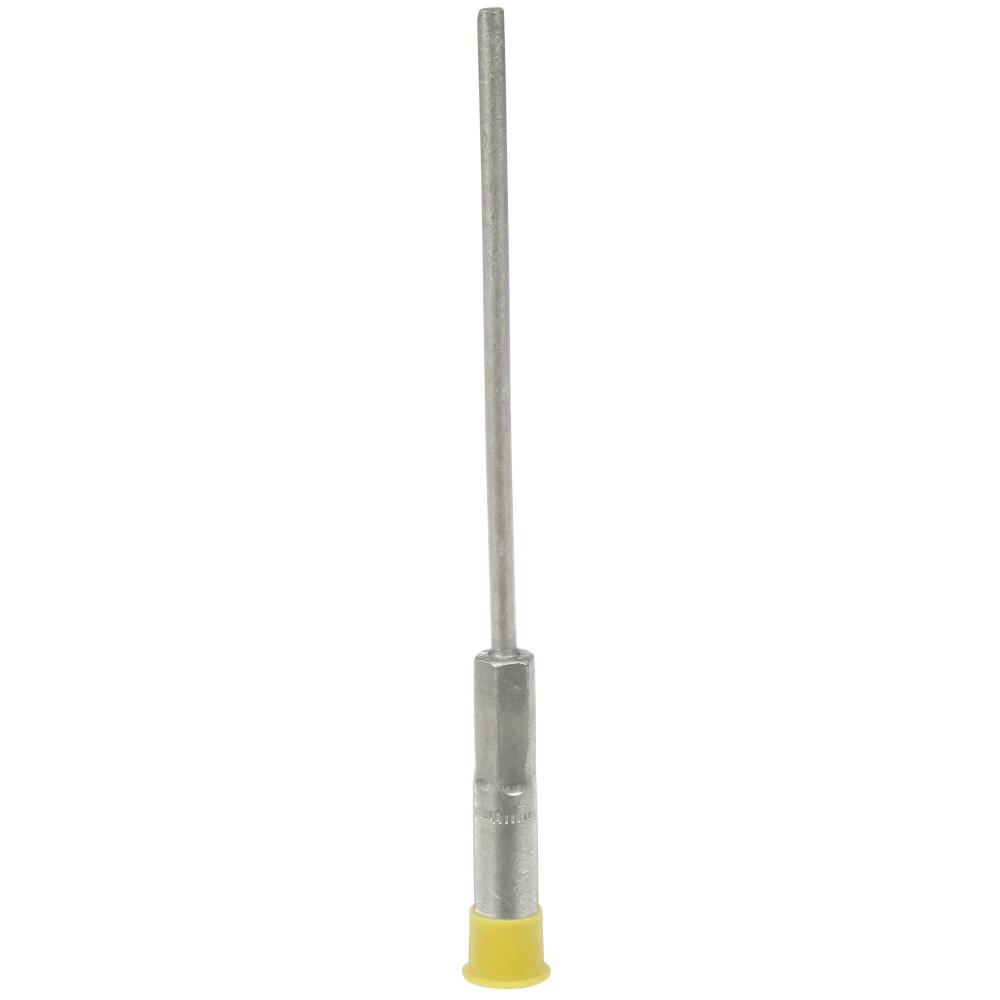

3M™ Stem Connector, SC0010, up to 35 kV, 1/0 AWG str., 2/0 AWG solid
Call For Price
- Part Number: 7000031364
- UPC:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
3M™ Stem Connector SC Series are provided with a factory crimped and sealed, tin-plated copper stem for aerial line connection. A suggested accessory to the stem connector is the 3M™ Parallel Clamp CP-1 that enables the connection of the stem connector to the overhead jumper wire.
Specifications
Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire Connectors
Industrial Subtype:
Wire Connector and Terminal Kits
Barrel Style:
Standard Barrel
ECCN:
EAR99
For Use With:
Aluminum or Copper Conductors
Indoor/Outdoor:
Both
Lug Base Metal:
Aluminum
Maximum Operating Voltage:
35 Kilovolt
Number of Holes:
0.0 none
Product Type:
Stem Connector
RoHS EU Comments:
RoHS 2011/65/EU compliant without exemption
Stem Diameter (Imperial):
0.25
Stem Diameter (Metric):
6.35 mm
Stem Length (Imperial):
6
Stem Length (Metric):
152.4 mm
UPC Code:
00054007146636
Other Details
A 3M™ Parallel Clamp CP-1 will connect the SC series connectors to an overhead jumper wire (available separately)
aluminum barrels with antioxidant paste
Connectors have copper stems
Factory crimped and sealed stem
