3M™ Scotchcast™ Electrical Resin 260, 44.1 lb.(20 kg.)
Call For Price
- Part Number: 7100024957
- UPC:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
The 3M™ Scotchcast™ Electrical Resin 260 is a 1-part powder resin used for coating flat surfaces, corners and high points. This general-purpose epoxy-based, powder resin has a very low viscosity property, that makes it easy to infuse on any surface. The resin melts when it's heated, it flows to a controlled extent and then cures, bonding to the surface in a uniform, thick coating.The 3M Scotchcast Electrical Resin 260 has a low gel point rating to ensure a quick curing process. The resin is made from a fusion blend process which offers the components necessary to provide a complete cure and meet required performance properties. It provides a continuous, tough moisture and chemical resistant dielectric coating to a variety of substrates. It is ideal for applications that need excellent thermal shock and mechanical shock resistance. Its high dielectric strength offers excellent electrical insulating property to the resin, thus making it an ideal insulator for creating a barrier between 2 conductors. UL Listed and RoHS 2011/65/EU Compliant.
Specifications
Details
Industrial Category:
Adhesives, Sealants and Tape
Industrial Subcategory:
Glues and Cements
Industrial Subtype:
Epoxy
Applicable by Electrostatic Spray:
Yes
Applicable by Fluid Bed Dip:
Yes
Applicable by Venturi Spray:
Yes
Application:
Utilities & Power: Coatings for Insulation
Color Family:
Green
Cure Method:
Oven
ECCN:
EAR99
Flame Retardant:
No
Form:
Powder
Material:
Epoxy
Maximum Operating Temperature (Celsius):
180.0 °C
Mining Sector Approval:
No
Product Type:
Electrical Resin
RoHS EU Comments:
RoHS 2011/65/EU compliant without exemption
Storage Time in Months:
24.0
Temperature Rating:
Class H (<=180 deg C)
Unit of Use - Customary Height Dimension:
60.06
Unit of Use - Customary Length Dimension:
1.00
Unit of Use - Customary Net Weight:
1.0000
Unit of Use - Customary Width Dimension:
1.00
Unit of Use - Item Quantity:
1.0
Unit of Use - Item Unit:
LBS
Unit of Use - Total Unit Quantity:
1.0
Unit of Use - Unit:
LBS
Voltage Rating:
Insulating
What Needs to be Coated:
Other
Other Details
buss bars and toroid cores
Chemical- and moisture-resistant
Compatible with electrostatic spray
EIS Approved and RoHS 2011/65/EU Compliant
fluid bed dip and venturi spray
Has 12 to 16-second gel time at 380 °F (193 °C)
Heat-
stators
UL Listed

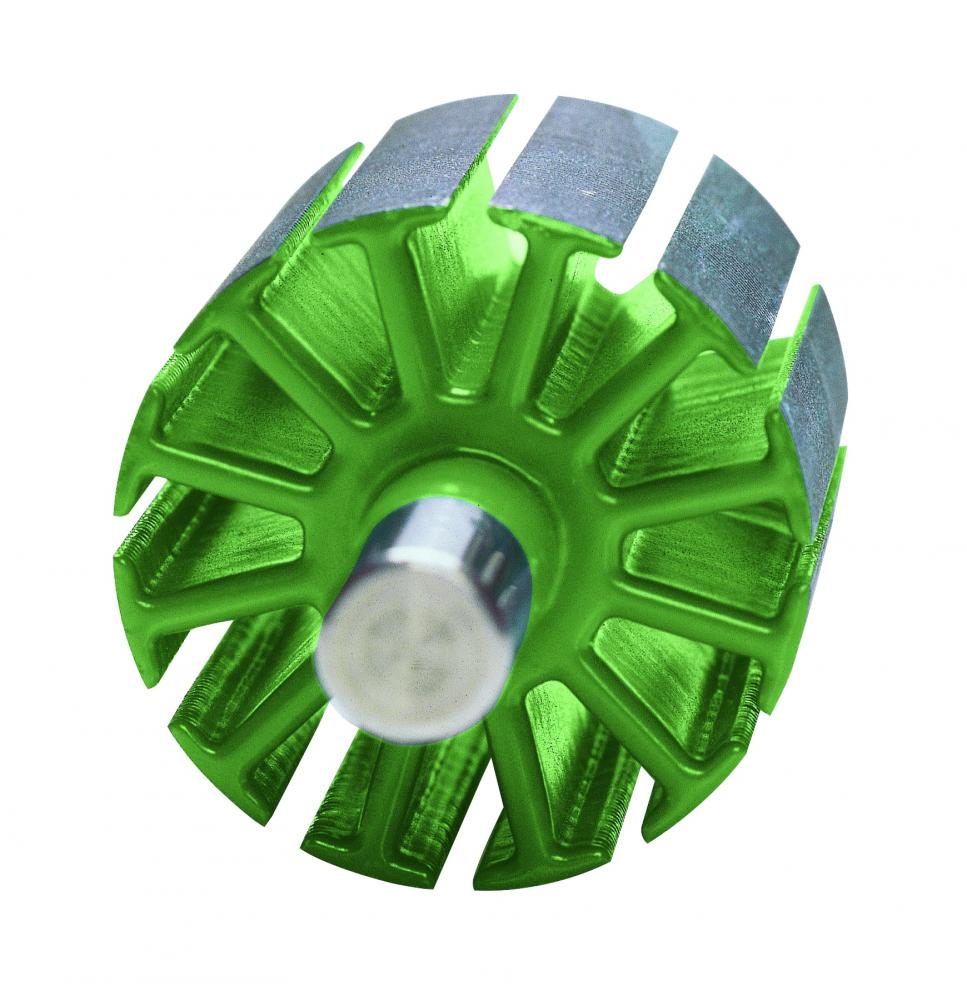

Useful for moisture-proofing and insulating armatures
Withstands temperatures of 356 °F (180 °C)
