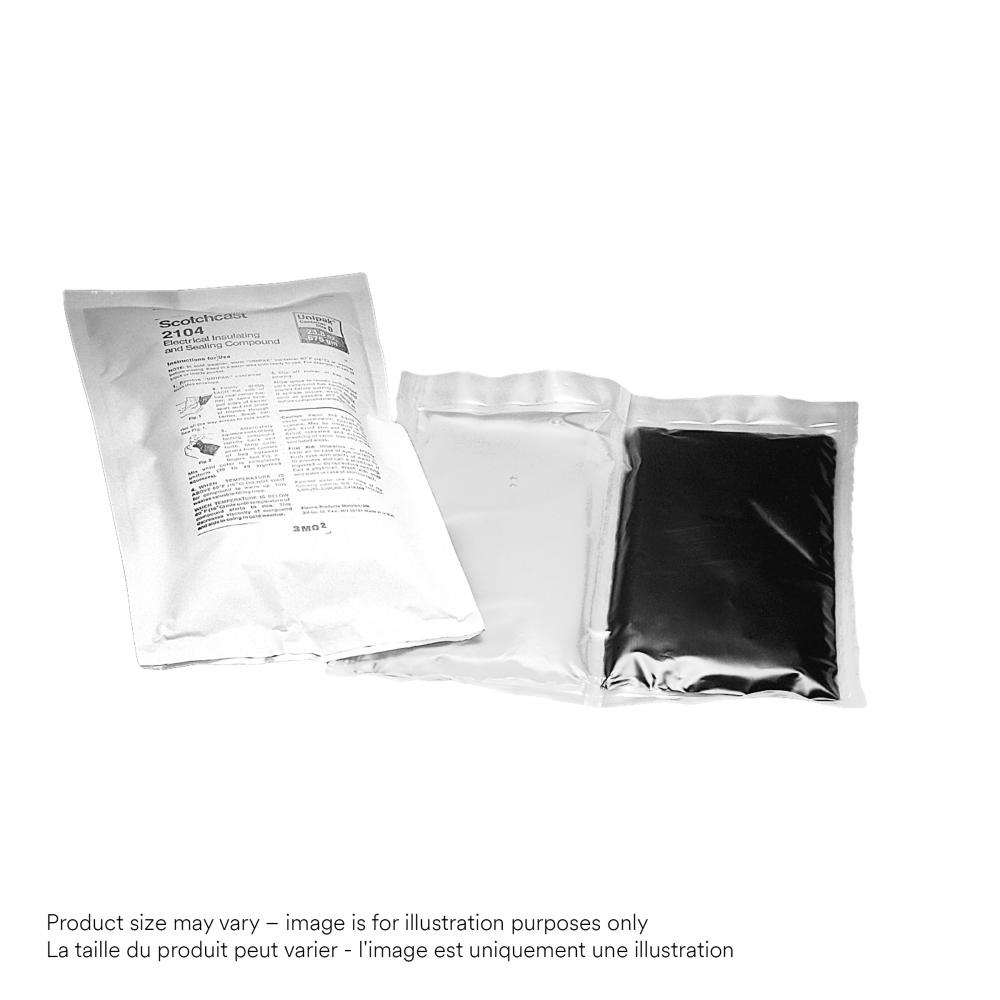

3M™ Scotchcast™ Electrical Insulating and Sealing Compound 2104B, 7.4 oz (209 g)
Call For Price
- Part Number: 7000145509
- UPC:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
The 3M™ Scotchcast™ Electrical Insulating and Sealing Compound is a two-part, low-viscosity polyurethane for permanent splice protection.The 3M Scotchcast Electrical Insulating Resin 2104 is a hard, two-part, polyurethane resin encapsulate designed specifically for permanent splice protection. It is formulated for virtually every electrical application requiring hard, non-re-enterable resin with good handling and performance characteristics. The resin is also used as the insulating material for cable splices operating at 1000 volts or less and is rated for continuous use at 90C with an overload rating of 130C. It may be stocked to cover all hard resin needs, ending the need for multiple encapsulate inventories. Gel time is 18 minutes at 23C.
Specifications
Details
Industrial Category:
Adhesives, Sealants and Tape
Industrial Subcategory:
Glues and Cements
Industrial Subtype:
Epoxy
Cable Insulation Outside Dia. Range (Metric):
22.1 mm - 26.8 mm
Cable Insulation Outside Diameter Range:
0.87 in - 1.06 in
Cable Shielding:
Jacketed Concentric Neutral (JCN)
Color Family:
Green
Connector Included:
CIR-21
Cure Method:
Room
Dielectric Strength (V/mil):
524 V/mil
ECCN:
EAR99
Elongation:
98.0 %
Flexibility:
Flexible
Form:
Liquid
Gel Time:
18 min @ 73 °F (23 °C)
Hardness:
70 Shore A
Lug/Stem Connector Included in Kit:
No
Material:
Polyurethane
Maximum Operating Temperature:
130 Degree Celsius
Minimum Operating Temperature (Celsius):
0.0 °C
Number of Conductors:
1.0
Product Key:
BRES BULK RESINS FJC
Product Technology:
Molded Rubber
Product Type:
Splice
Resin Matrix:
Unfilled
RoHS EU Comments:
RoHS 2011/65/EU compliant without exemption
Splice Type:
Inline Repair
Temperature Rating:
Class B
Tensile Strength (Imperial):
444 Pound-Force Per Square
UPC Code:
00054007313823
Voltage:
28 kV
Other Details
eliminating voids
even at low temperatures
Excellent wetting properties and low viscosity
Flows well
Packaged in convenient 3M two part Unipak bag for easy mixing and pouring
Room temperature cure
Tough and semi-flexible
Withstands a voltage rating of 1 kV or less
