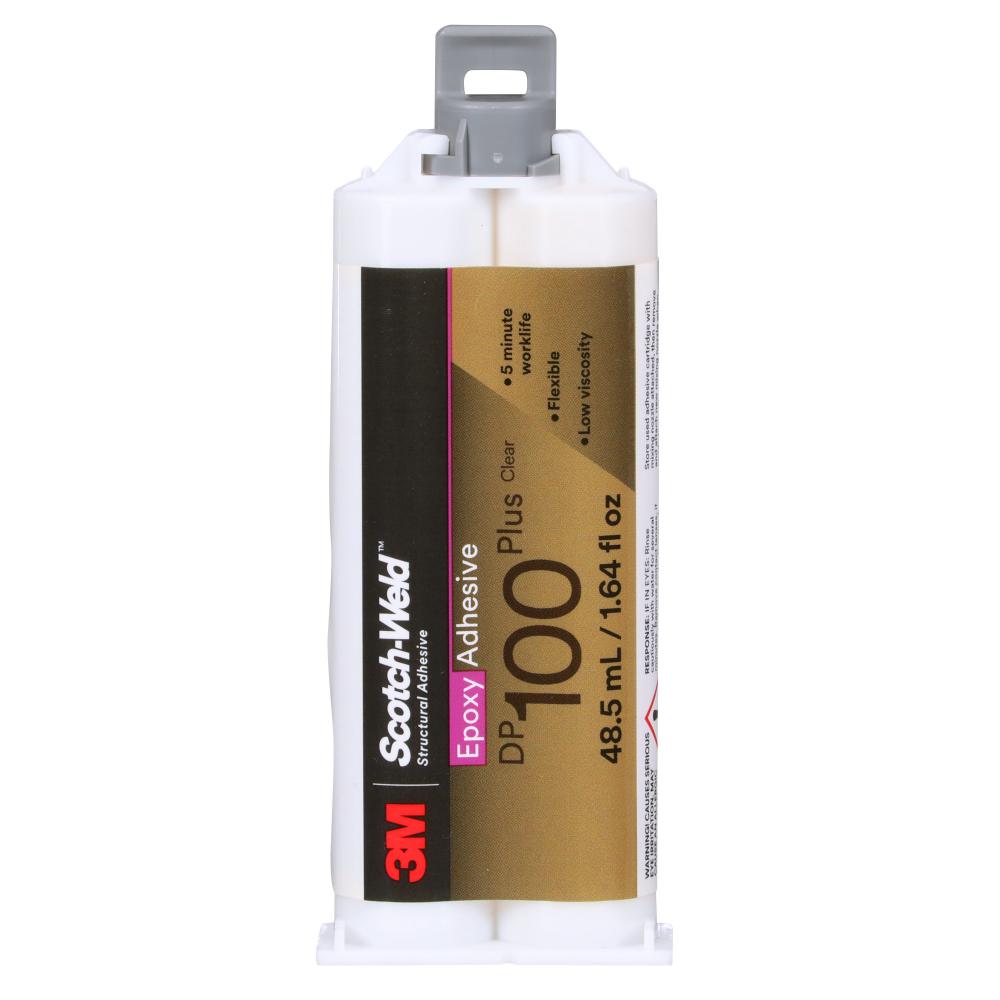

3M™ Scotch-Weld Epoxy Adhesive DP100 Plus is a very flexible, two-part epoxy adhesive that cures clear and stays clear - but not colourless - when cured in large masses.There's no more versatile structural epoxy than 3M Scotch-Weld Epoxy Adhesive DP100 Plus. It works on a variety of substrates including metals, ceramics, glass, wood, and many plastics. The low viscosity makes it easy to dispense and self-level; and an effective tool for filleting and potting. It features high shear strength and good peel and impact performance that, when combined with good flexibility, make it ideal for a variety of applications in the transportation, specialty vehicle, electrical, general industrial, sporting goods, construction, and consumer goods industries. Epoxy adhesives, including 5-minute epoxy are part of the class of adhesives called "structural adhesives," which include polyurethane, acrylic, cyanoacrylate, and others. Epoxies are formulated as liquid reactive polymers that undergo a chemical reaction when mixed and then cure to form a solid plastic material. Once the two parts are mixed in their specified ratio, they begin the curing process and offer a limited working time where the adhesive can be applied and the two surfaces positioned as needed. This work life lasts anywhere from a few minutes to several hours. These structural adhesives provide high shear and peel strengths, depending on the formula, and better heat and chemical resistance than other common adhesives. In general, epoxy adhesives have the highest overall strength and offer the best performance and most resistance to high temperatures, solvents and outdoor weathering.
Details
Industrial Category:
Adhesives, Sealants and Tape
Application:
Bonding , Potting , Encapsulating , Mounting & Trim Attachment , Hard Disk Drive Component Assembly , Sealing , Small Joint Assembly
Container Size (Imperial):
Design Challenges:
Noise Vibration & Harshness Control NVH
Full Cure Time:
24-48 Hours @ 72 F (22 C)
Maximum Operating Temperature (Fahrenheit):
Storage Temperature (Celsius):
Substrate 2:
Plastic (High Performance Nylon)
Worklife:
20 g: 4 min - 8 min @ 73 °F (23 °C)
Other Details
Fast 4 minute work life with handing strength in 20 minutes at room temperature
Good high shear and peel strength
making it a good choice for bonding dissimilar surfaces
permanent bond even under vibration and impact
Very flexible adhesive provides strong
