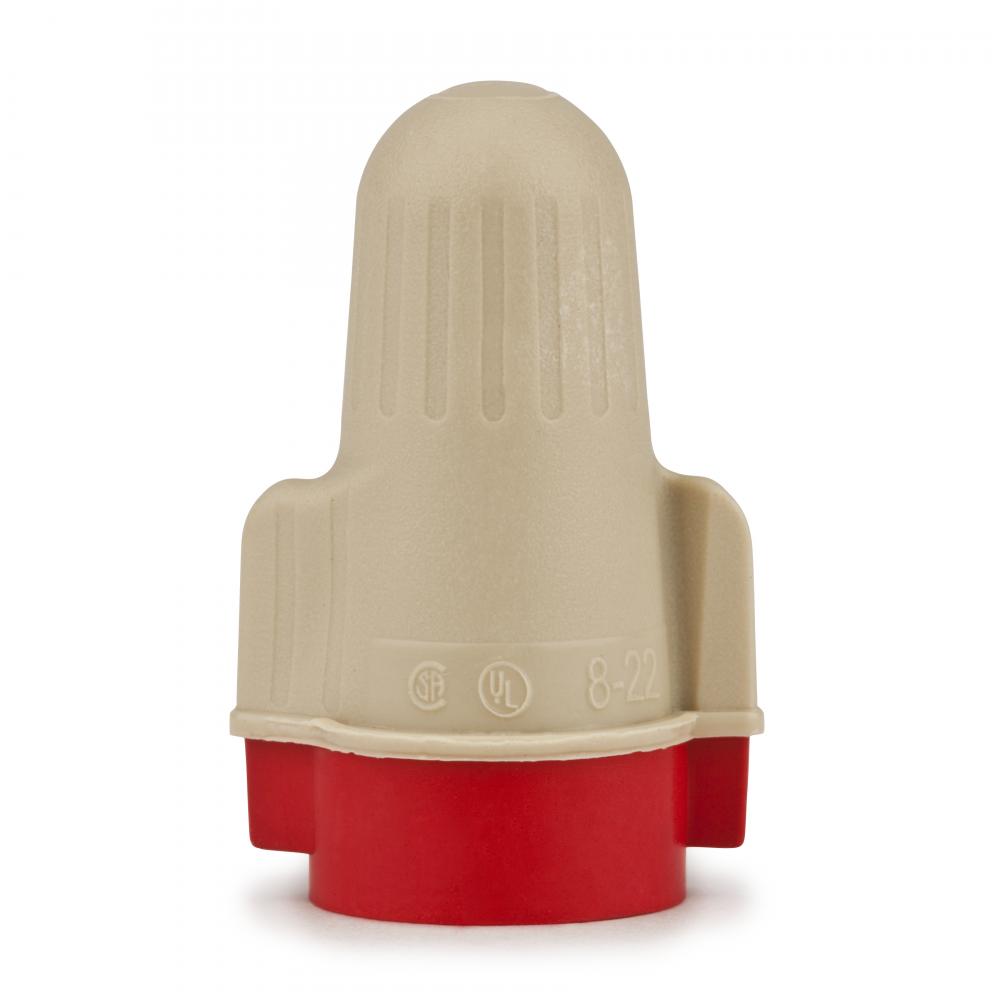

3M™ Performance Plus Wire Connector T/R+ Keg, tan/red, 22 - 8 AWG
Call For Price
- Part Number: 7000132941
- UPC:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
The 3M™ Performance Plus Wire Connector electrically connects two or more conductor ends in a pigtail application and insulates the connection. It combines a very small shell with an increased wire range. The spring bites wire quickly with less effort, and the small shell fits easily into tight spaces, while its flexible skirt helps protect workers from contact with over stripped wires.
Specifications
Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire Connectors
Industrial Subtype:
Wire Connector and Terminal Kits
Color Family:
Multi-color
Conductor Size Unit:
AWG
Connection Type:
Wire
Connector Style:
Twist On
ECCN:
EAR99
Flame Retardant:
Yes
Material:
Plastic
Maximum Insulation Outer Diameter (Metric):
3.7 mm
Maximum Insulation Outside Diameter:
0.145 in
Maximum Operating Temperature (Celsius):
105.0 °C
Maximum Operating Temperature (Fahrenheit):
221.0 °F
Maximum Recommended Voltage Rating:
600.0 V
Maximum Voltage Rating:
600 V
Maximum Wire Gauge:
8 AWG
Minimum Operating Temperature (Celsius):
0.0 NP
Minimum Operating Temperature (Fahrenheit):
0.0 NP
Minimum Wire Gauge:
22 AWG
Product Type:
Connector
RoHS EU Comments:
RoHS 2011/65/EU compliant without exemption
Unit of Use - Customary Height Dimension:
0.75
Unit of Use - Customary Length Dimension:
1.25
Unit of Use - Customary Net Weight:
0.0080
Unit of Use - Customary Width Dimension:
0.75
Unit of Use - Item Quantity:
1.0
Unit of Use - Item Unit:
CONN
Unit of Use - Total Unit Quantity:
1.0
Unit of Use - Unit:
CONN
Voltage Rating:
600 V
Other Details
600V-rated for building wire and 1000V-rated for signs
CE Marking and CSA Certified
comfortable feel
Compact size and red miniskirt
fixtures or luminaires
Flame-retardant
Incorporates a spring mechanism to spin on quickly and tighten down easily
polypropylene and thermoplastic elastomer construction
Quick bite spring design
Smooth
UL Listed
Withstands temperatures up to 221 °F (105 °C)
