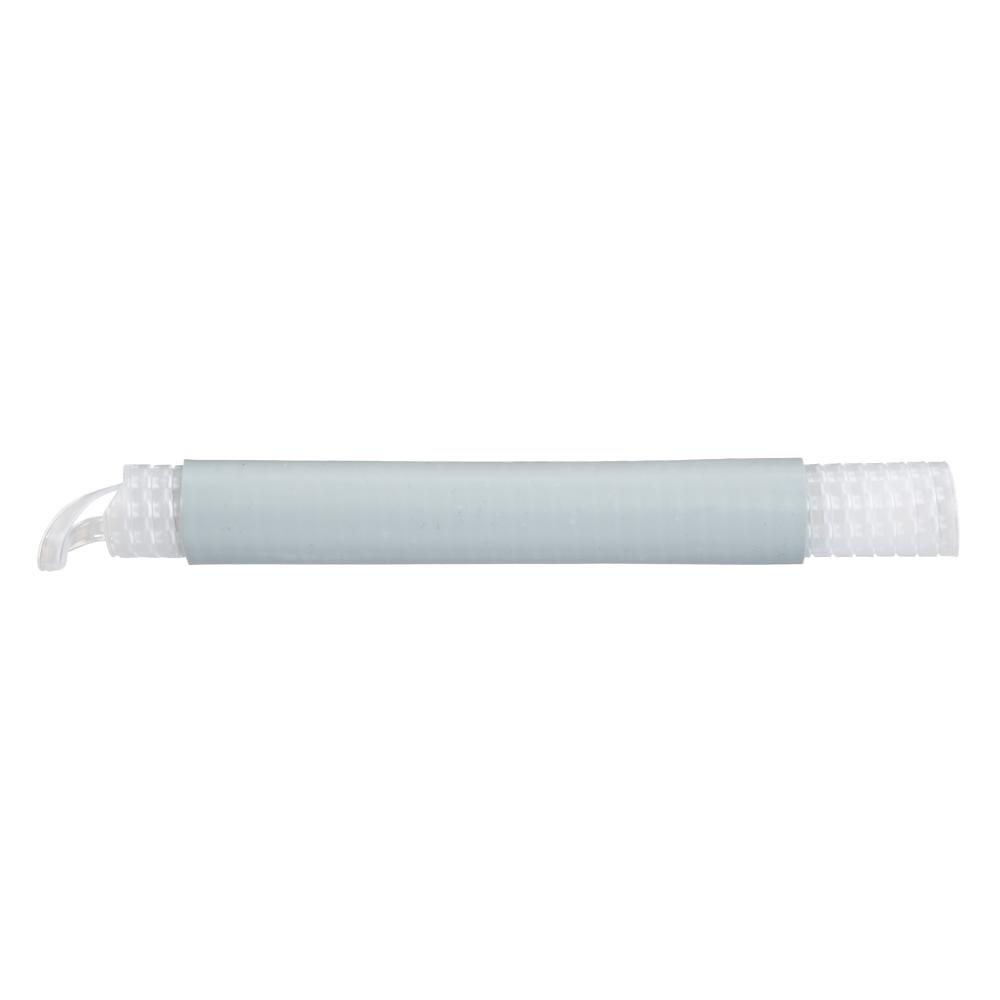

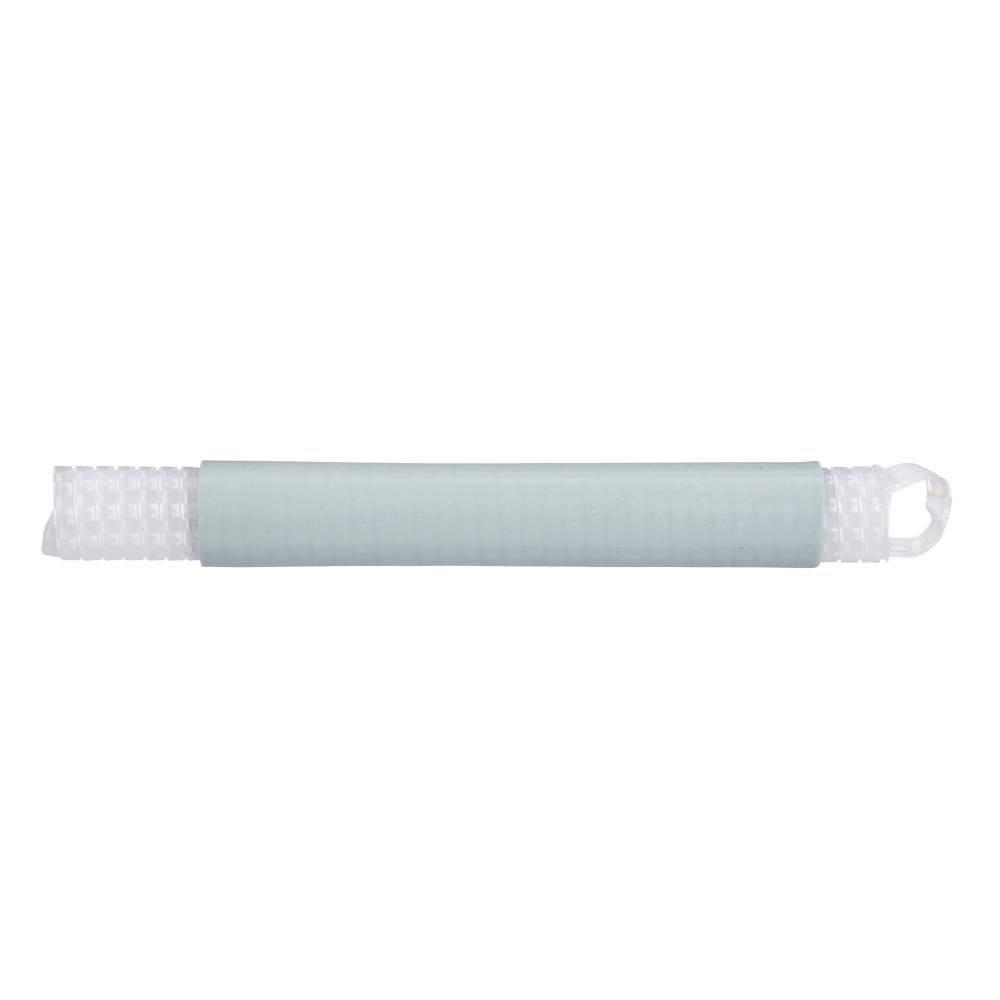

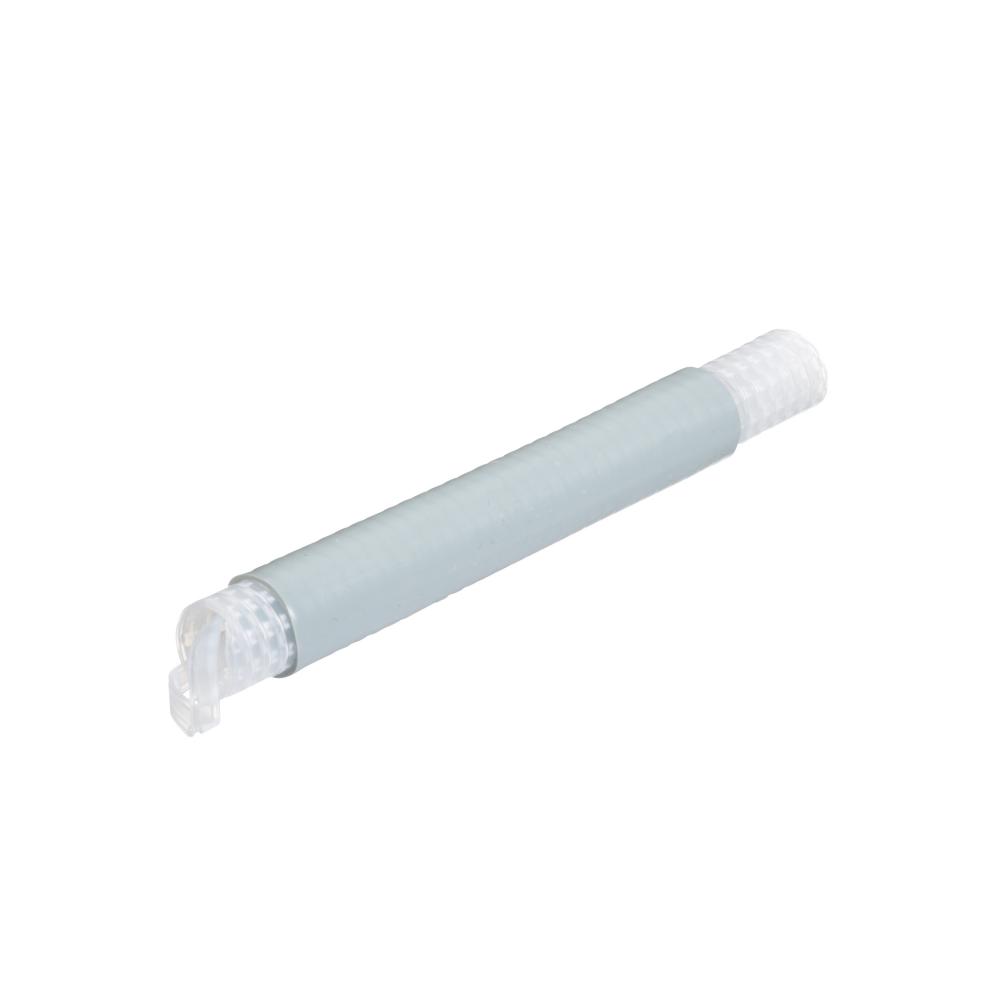

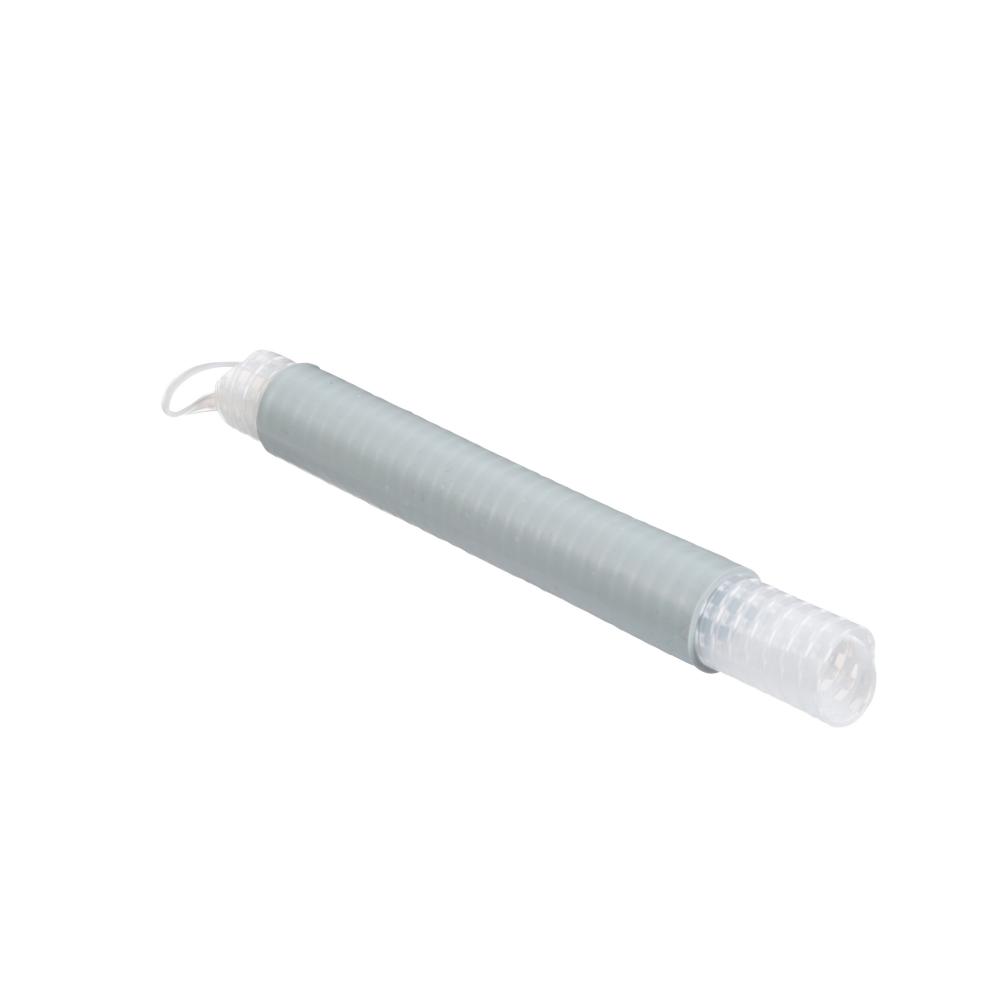

3M™ Cold Shrink Silicone Insulator, 8443-6.5, 6-2 AWG (14-30 mm²), 1 kV
Call For Price
- Part Number: 7000058007
- UPC:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
3M™ Cold Shrink Silicone Insulators are insulating sleeves made from specially formulated high-temperature silicone rubber.3M Cold Shrink Insulators are designed using a unique cold shrink delivery system. They are supplied prestretched on a removable core for efficiency and ease of installation. Removal of the core after positioning allows the product to shrink into position forming a moisture-tight seal. The live memory action of the specially formulated material ensures a permanent, durable environmental seal and insulation.
Specifications
Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire Management
Industrial Subtype:
Shrink Tubing
Cable Shielding:
Tape Shield
Cable Type:
Power Cable
Color Family:
Gray
Conductor Material:
Copper
ECCN:
EAR99
Halogen Free:
No
Inner Diameter After Shrink (Imperial):
0.299 in
Inner Diameter After Shrink (Metric):
7.6 mm
Inner Diameter Before Shrink (Imperial):
0.559 in
Inner Diameter Before Shrink (Metric):
14.2 mm
Material:
Silicone
Maximum Operating Temperature (Celsius):
260.0 °C
Maximum Operating Temperature (Fahrenheit):
500.0 °F
Minimum Operating Temperature (Celsius):
-55.0 °C
Minimum Operating Temperature (Fahrenheit):
-67.0 °F
Model:
Cold-shrink
Number of Conductors:
1.0
Operating Temperature (Celsius):
-55 up to +260°C
Overall Diameter (Metric):
14.3 mm
Overall Length (Imperial):
6.5 in
Overall Length (Metric):
165.0 mm
Product Type:
Splice
Relaxed Tube Length:
6.5 in
Relaxed Tube Length (Metric):
0.165 m
RoHS EU Comments:
RoHS 2011/65/EU compliant without exemption
Shrink Ratio:
2:1
Splice Type:
Cold Shrink
UL Approval:
No
UPC Code:
00054007094821
Voltage:
1 kV
Wall Thickness after Shrinking:
2.8 mm
With Inner Glue:
No
Other Details
Accommodates a wide range of cable sizes
alkalis and ozone
No mastic or tape required to seal
no special tools and no heat required
Operating temperature range : -55ºC to 260ºC (-66ºF to 500ºF)
Quick and easy installation
Resists acids
retains resiliency and pressure
Seals tight
