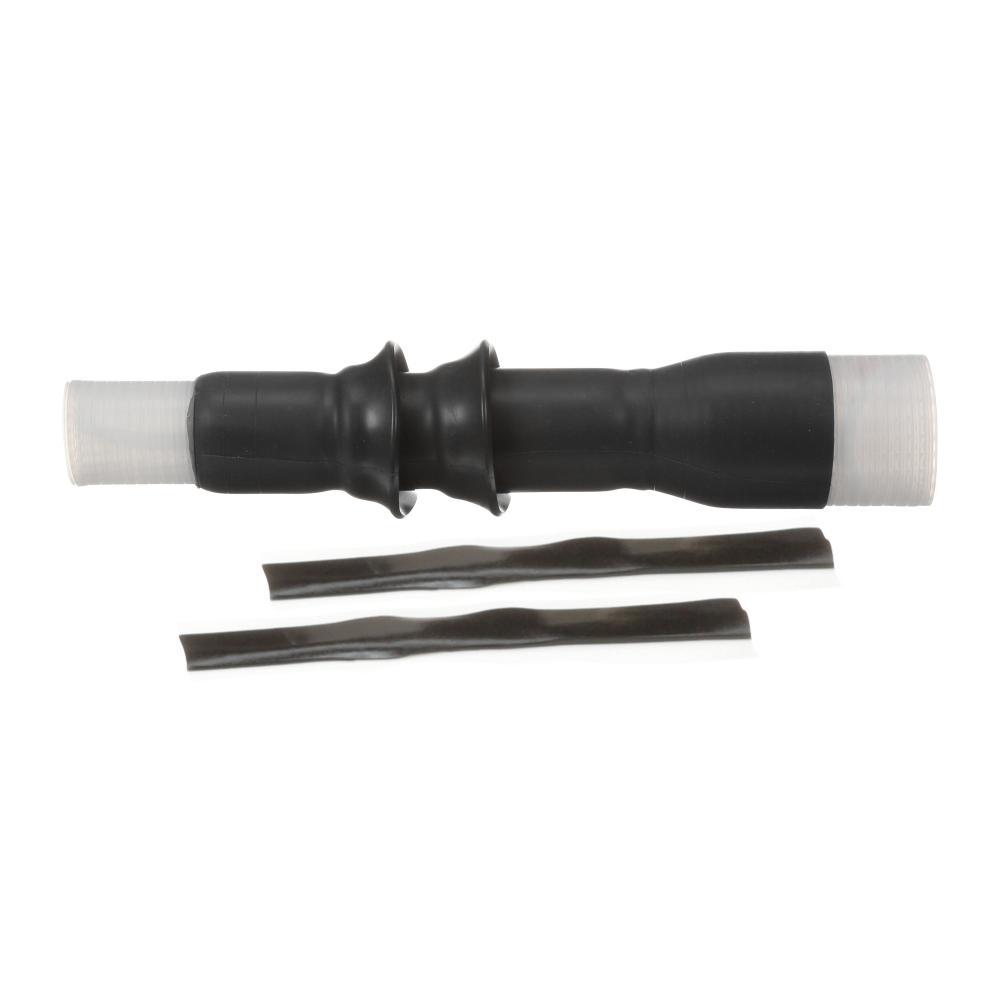

3M™ Cold Shrink QT-III Termination Kit 7642-S-2-22, 5-Insulation OD 0.64-1.08 in, 1/Kit
Call For Price
- Part Number: 7000132740
- UPC:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
The 3M™ Cold Shrink QT-III Termination Kit includes a 1 piece, skirted termination. It ensures a pliable, tight seal for jacketed concentric neutral and concentric neutral power cables.The 3M Cold Shrink QT-III Termination Kit features a conjunction of high dielectric constant material and silicone rubber insulation that allows the termination to withstand voltages of 5 to 35kV.
Specifications
Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire and Cable
Application:
Cable Termination
BIL:
110 kV
Breakout Boot:
No
Cable Insulation Outside Dia. Range (Metric):
16.3 mm - 27.4 mm
Cable Insulation Outside Diameter Range:
0.64 in - 1.08 in
Cable Shielding:
Jacketed Concentric Neutral (JCN)
Cable Type:
Stranded
Conductor Size Unit:
AWG
ECCN:
EAR99
Indoor/Outdoor:
Outdoor
Insulation Level:
100%
Insulation Outer Diameter (Imperial):
0.92 in
Insulation Outer Diameter (Metric):
18.542 mm
Insulation Rejacketing:
Yes
Lug/Stem Connector Included in Kit:
No
Material:
Silicone Rubber
Maximum Installed Length:
9.80 in
Maximum Installed Length (Metric):
24.89 cm
Number of Conductors:
1.0
Number of Skirts:
2.0
Product Color:
Grey
RoHS EU Comments:
Contact 3M for information
Termination Type:
Single Termination
Unit of Use - Customary Net Weight:
0.8714
Unit of Use - Item Quantity:
1.0
Unit of Use - Item Unit:
KIT
Unit of Use - Total Unit Quantity:
1.0
Unit of Use - Unit:
KIT
Voltage:
15 kV
Voltage Application:
Medium Voltage
Other Details
High dielectric-constant material regulates the distribution of electric field stress
Provides a void-free seal to jacketed concentric neutral and concentric neutral power cables
Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
Suitable for outdoor applications
