3M™ Cold Shrink QT-III Inverted Outdoor Termination Kit

3M™ Cold Shrink QT-III Inverted Outdoor Termination Kit

Call For Price
  • Part Number: 7000140765
  • UPC:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

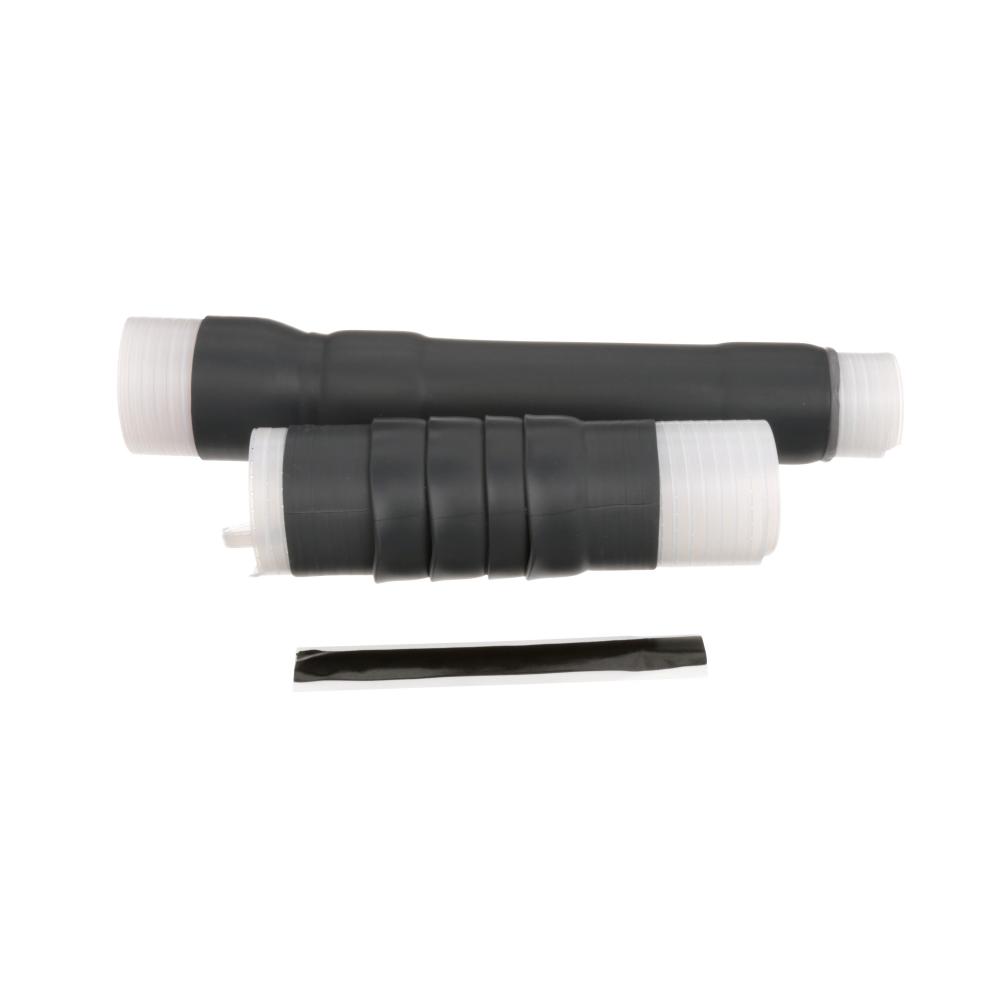

3M™ Cold Shrink QT-III 7640-S-INV & 7650-S-INV Series Inverted Termination Kit includes a single-conductor, skirted termination. It ensures a pliable, tight seal for jacketed concentric neutral and concentric neutral power cables. The conjunction of high dielectric-constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.Each kit contains: One 3M Hi-K Tracking Resistant Silicone Rubber Termination, one 3M Tracking Resistant Silicone Rubber Skirt Assembly, two Scotch Mastic Sealing Strips 2230, and one Instruction Sheet.
Specifications
Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire and Cable
BIL:
200 kV
Breakout Boot:
No
Cable Insulation Outside Dia. Range (Metric):
26.7 mm - 45.7 mm
Cable Insulation Outside Diameter Range:
1.05 in - 1.8 in
Cable Shielding:
Concentric Neutral (CN)
Compatible Lug:
QL2-A-4/0-600
ECCN:
EAR99
Family:
QT-III
Indoor/Outdoor:
Indoor Non-skirted
Insulation Level:
100%
Insulation Outer Diameter (Imperial):
1.44 in
Insulation Outer Diameter (Metric):
28.702 mm
Insulation Rejacketing:
No
Maximum Installed Length:
16.00 in
Number of Conductors:
1.0
RoHS EU Comments:
Contact 3M for information
Unit of Use - Customary Height Dimension:
4.15
Unit of Use - Customary Length Dimension:
6.40
Unit of Use - Customary Net Weight:
2.3300
Unit of Use - Customary Width Dimension:
18.30
Unit of Use - Item Quantity:
1.0
Unit of Use - Item Unit:
KIT
Unit of Use - Total Unit Quantity:
1.0
Unit of Use - Unit:
KIT
Voltage:
15 kV
Voltage Application:
Medium Voltage
Other Details
Excellent tracking resistance
heat or special tools required
Hi-K stress control
Includes everything required to make one single phase termination (except lug)
No torches
Quick installation with versatile one-piece design
UV resistance and water-shedding properties
